Omschrijving

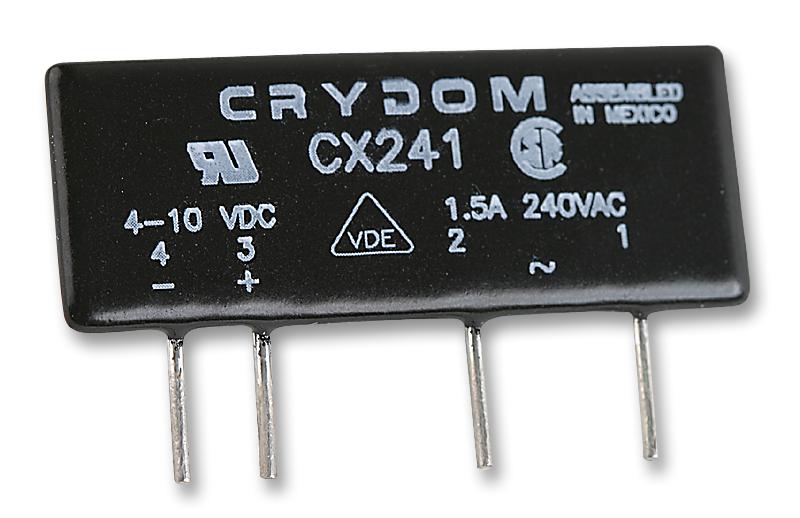

SENSATA/CRYDOM - CX241 - Solid State Relay, CX241 Series, SIP, SPST-NO, 1.5 A, 280 Vrms, PCB, Through Hole, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 1.5A
- Operating Voltage Max: 280Vrms
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: Zero Crossing
- Operating Voltage Min: 12Vrms
- Control Voltage Min: 4VDC
- Control Voltage Max: 10VDC
- Product Range: CX241 Series
- SVHC: No SVHC (07-Jul-2017)
- Blocking voltage: 600V
- Control Current Typ: 10mA
- Control Voltage DC Max: 10VDC
- Control Voltage DC Min: 4VDC
- Control Voltage Range: 4V DC to 10V DC
- Control Voltage Type: DC
- External Depth: 7.6mm
- External Length / Height: 19.1mm
- External Width: 43mm
- Input Voltage: 4V DC to 10V DC
- Isolation Voltage: 4kV
- Load Current Max: 1.5A
- Load Current Min: 25mA
- Load Current RMS Max: 1.5A
- Load Voltage Range: 12Vrms to 280Vrms
- Output Type: Thyristor
- RMS Load Current Min: 0.025A
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 10V
- Rate of Voltage Change dv / dt: 200V/s
- Surge Current: 10A
