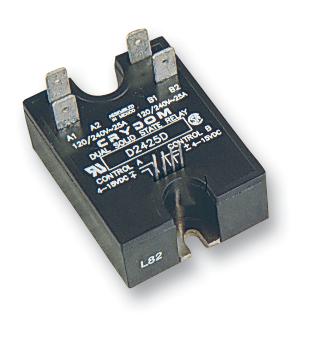

D2425D SSR, Dual, 25A, 240Vac SENSATA/Crydom

SENSATA/CRYDOMSKU:D2425D Bestelcode:1200196

Prijs:
Actie prijs€139,30

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (20 units)

Documenten en downloads

Omschrijving

SENSATA/CRYDOM - D2425D - Solid State Relay, DPST-NO, 25 A, 280 VAC, Panel Mount, Quick Connect, Zero Crossing

  • Contact Configuration: DPST-NO
  • Load Current: 25A
  • Operating Voltage Max: 280VAC
  • Relay Mounting: Panel
  • Relay Terminals: Quick Connect
  • Switching Mode: Zero Crossing
  • Operating Voltage Min: 24VAC
  • Control Voltage Min: 4VDC
  • Control Voltage Max: 15VDC
  • Product Range: 1 Series
  • SVHC: No SVHC (12-Jan-2017)
  • Blocking voltage: 500V
  • Control Voltage DC Max: 15VDC
  • Control Voltage DC Min: 4VDC
  • Control Voltage Range: 4V DC to 15V DC
  • Control Voltage Type: DC
  • External Depth: 57.15mm
  • External Diameter: 4.5mm
  • External Length / Height: 21mm
  • External Width: 44.5mm
  • Fixing Centres: 47.5mm
  • Isolation Voltage: 4kV
  • Load Current Min: 150mA
  • Load Current RMS Max: 25A
  • Must Release Voltage: 1V
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Operating Voltage Range: 24Vrms to 280Vrms
  • Output Type: Thyristor
  • RMS Load Current Min: 40mA
  • RMS Load Voltage Max: 280V
  • RMS Load Voltage Min: 24V
  • Rate of Voltage Change dv / dt: 200V/µs
  • Resistance: 310ohm
  • Single Cycle Surge Current: 350A
