D2D12 SSR, 12A, 200VDC SENSATA/CRYDOM

SENSATA/CRYDOMSKU:D2D12 Bestelcode:1200296

Prijs:
Actie prijs€101,25

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (5 units)

Documenten en downloads

Omschrijving

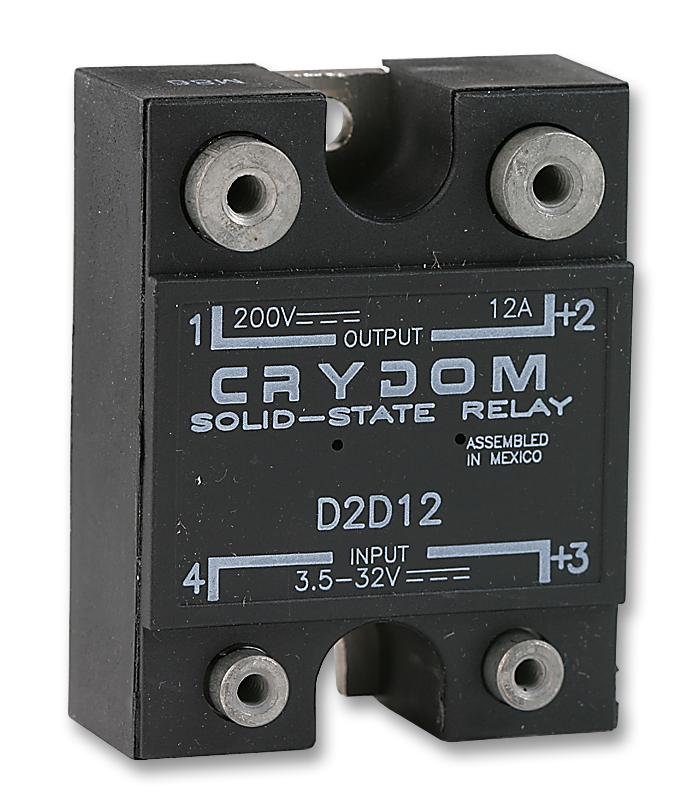

SENSATA/CRYDOM - D2D12 - Solid State Relay, SPST-NO, 12 A, 200 VDC, Panel Mount, Screw, DC Switch

  • Contact Configuration: SPST-NO
  • Load Current: 12A
  • Operating Voltage Max: 200VDC
  • Relay Mounting: Panel
  • Relay Terminals: Screw
  • Switching Mode: DC Switch
  • Operating Voltage Min: 0VDC
  • Control Voltage Min: 3.5VDC
  • Control Voltage Max: 32VDC
  • Product Range: 1-DC Series
  • SVHC: No SVHC (12-Jan-2017)
  • Control Current Max: 28mA
  • Control Current Typ: 1.6mA
  • Control Voltage DC Max: 32VDC
  • Control Voltage DC Min: 3.5VDC
  • Control Voltage Range: 3.5V DC to 32V DC
  • Control Voltage Type: DC
  • Isolation Voltage: 2.5kV
  • Load Current Min: 20mA
  • Load Current RMS Max: 12A
  • Load Voltage DC Max: 200V
  • On State Resistance Max: 0.23ohm
  • Operating Voltage Range: 0V DC to 200V DC
  • Output Type: MOSFET
  • RMS Load Voltage Max: 200VDC
  • Single Cycle Surge Current: 27A
  • Surge Current: 27A
  • Turn Off Time: 1ms
  • Turn On Time: 0.1ms
