OMRON - D2MQ-4L-1 - Microswitch, Snap Action, Lever, SPDT, Solder, 500 mA, 30 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 500mA
- Contact Voltage DC Nom: 30VDC
- Product Range: D2MQ Series
- Contact Voltage AC Nom: -
- Operating Force Max: 0.39N
- Actuation Type: Lever
- Actuator Type: Lever
- Contact Current AC: 500mA
- Contact Current DC Max: 500mA
- Contact Current Rating: 500mA
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 30V
- External Depth: 8.1mm
- External Length / Height: 6.5mm
- External Width: 2.6mm
- Fixing Centres: 4mm
- Fixing Centres LxW: 4mm
- Insulation Resistance: 100Mohm
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 30000
- Operating Force: 0.39N
- Operating Temperature Max: 70°C
- Operating Temperature Min: -15°C
- Pre-travel: 0.4mm
Verwachte verzendkosten
Bekijk ook eens

OMRON

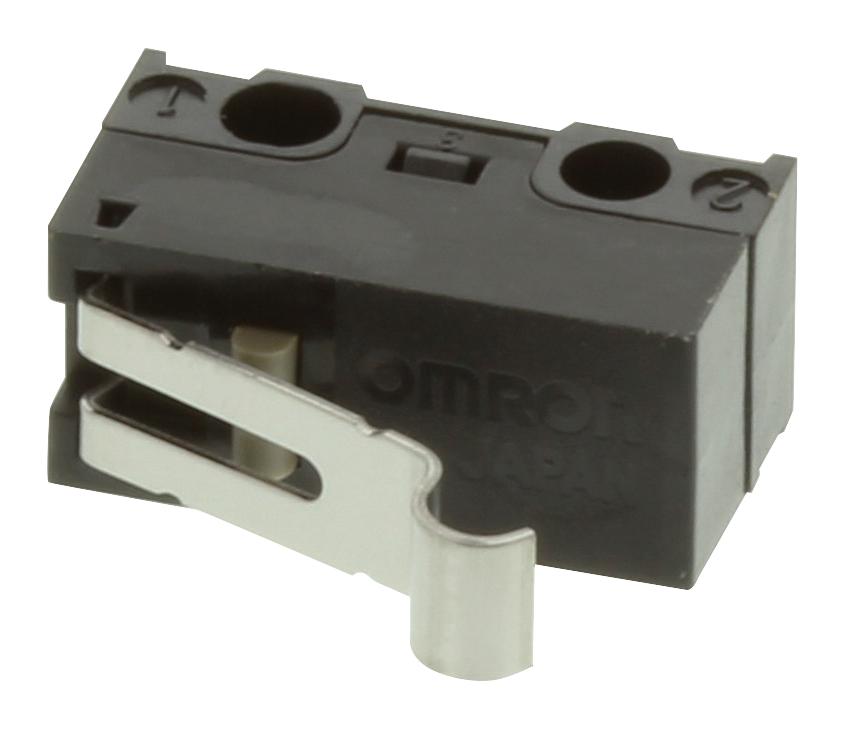

D2MQ-1l-Tr Microswitch, Leaf Lever, 0.5A. Rh Omron
