Omschrijving

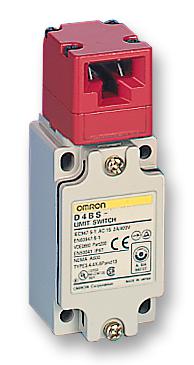

OMRON - D4BS-15FS - Safety Interlock Switch, Door, D4BS, SPST-1NO / 1NC, Screw, 400 V, 10 A
- Product Range: D4BS Series
- Contact Configuration: SPST-1NO / 1NC
- Switch Terminals: Screw
- Contact Voltage AC Max: 400V
- Contact Current AC Max: 10A
- IP Rating: -
- Contact Voltage DC Max: -
- Contact Current DC Max: -
- Conduit Thread Size: PG13.5
- Contact Rating: 10A
- External Depth: 39mm
- External Length / Height: 110mm
- External Width: 40mm
- IP / NEMA Rating: IP67
- Operating Force: 19.61N
- Operating Temperature Max: 55°C
- Operating Temperature Min: -10°C
- Return Force Min: 19.61N
- Switch Operation: Off-On
- Thermal Current Rating: 10A
- Withstand Voltage: 4kV
- Working Voltage: 400V
