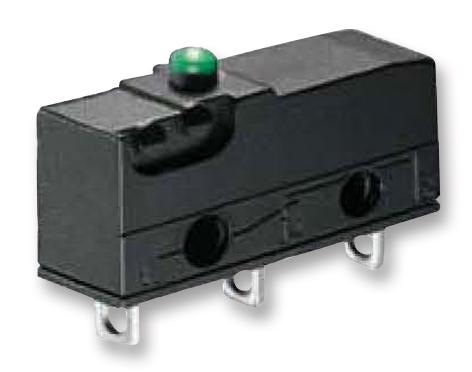

DB1C-C1AA Microswitch, SPDT, Plunger Actuator ZF Electronics

ZF ELECTRONICS - DB1C-C1AA - Microswitch, Subminiature, Plunger, SPDT, Solder, 6 A

• Microswitch Type: Snap Action
• Microswitch Actuator: Plunger
• Contact Configuration: SPDT
• Switch Terminals: Solder
• Contact Current Max: 5A
• Contact Voltage DC Nom: -
• Product Range: DP Series
• Contact Voltage AC Nom: 250VAC
• Operating Force Max: 150gf
• SVHC: No SVHC (15-Jan-2019)
• Actuation Type: Plunger
• Actuator Type: Plunger
• Approval Bodies: ENEC, KEMA-KEUR
• Approval Category: UL Recognised
• Contact Current AC: 5A
• Contact Current AC Max: 5A
• Contact Voltage AC Max: 250V
• Differential Travel Max: 0.1mm
• External Depth: 6.5mm
• External Length / Height: 9mm
• External Width: 20mm
• Fixing Centres LxW: 9.5mm
• Flammability Rating: UL 94V- O
• IP / NEMA Rating: IP50
• Material: PET
• No. of Electrical Operations: 6000
• Operating Temperature Max: 120°C
• Operating Temperature Min: -40°C
• Over Travel Min: 0.6mm
• Pre-travel: 1mm
• Switch Case: PET (Polyethylene Terephthalate)
