Omschrijving

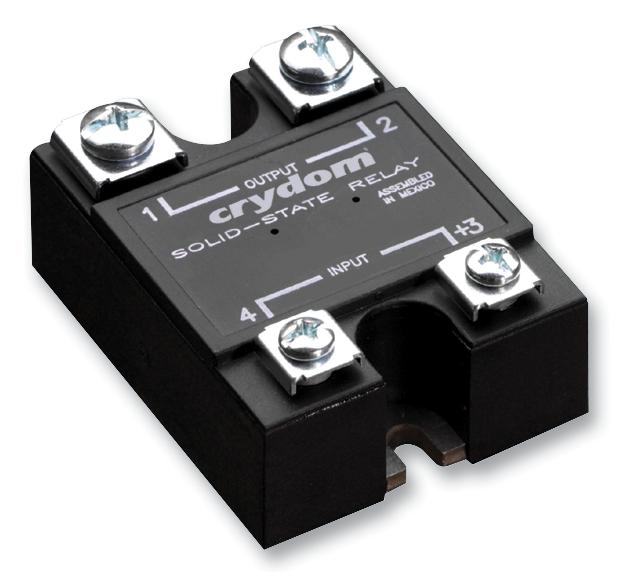

SENSATA/CRYDOM - DC60S7 - Solid State Relay, SPST-NO, 7 A, 60 VDC, Panel Mount, Screw, DC Switch
- Contact Configuration: SPST-NO
- Load Current: 7A
- Operating Voltage Max: 60VDC
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: DC Switch
- Operating Voltage Min: 3VDC
- Control Voltage Min: 3.5VDC
- Control Voltage Max: 32VDC
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Control Current Typ: 2.2mA
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3.5VDC
- Control Voltage Range: 3.5V DC to 32V DC
- Control Voltage Type: DC
- External Depth: 47.5mm
- External Length / Height: 22.9mm
- External Width: 45.7mm
- Input Impedance: 1500ohm
- Insulation Resistance: 1000Mohm
- Isolation Voltage: 4kV
- Leakage Current: 0.1mA
- Load Current Max: 7A
- Load Current Min: 0.02A
- Load Current RMS Max: 7A
- Load Voltage DC Max: 60V
- Load Voltage DC Min: 3V
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Operating Voltage Range: 3V DC to 60V DC
- Output Type: Bipolar Transistor
- RMS Load Current Min: 0.02A
- RMS Load Voltage Max: 60VDC
- RMS Load Voltage Min: 3VDC
- Surge Current: 14A
