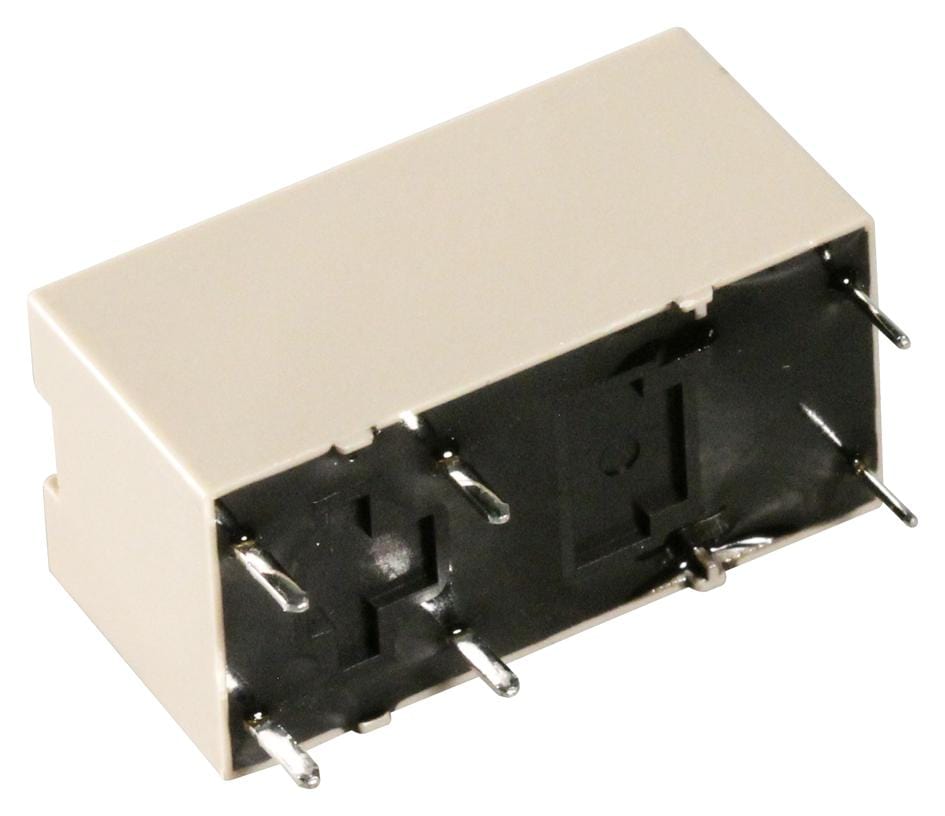

DE2A-5V Relay, DPST-NO, 250VAC, 30Vdc, 8A Panasonic

PANASONICSKU:DE2A-5V Bestelcode:2095606

Prijs:
Actie prijs€16,46

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (58 units)

Documenten en downloads

Omschrijving

PANASONIC - DE2A-5V - General Purpose Relay, DE(ADE) Series, Power, Non Latching, DPST-NO, 5 VDC, 8 A

  • Contact Configuration: DPST-NO
  • Coil Voltage: 5VDC
  • Contact Current: 8A
  • Product Range: DE Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 125ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Current: 40mA
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 8A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 12.5mm
  • External Height: 12.5mm
  • External Width: 25mm
  • Nom Operating Power: 200mW
  • Relay Type: Power
