DMC2038LVT MOSFET, NP Ch, Comp Pair, 20V, TSOT26 Diodes Inc.

DIODES INC.SKU:DMC2038LVT Bestelcode:2061516

Prijs:
Actie prijs€1,01

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2990 units)

Documenten en downloads

Omschrijving

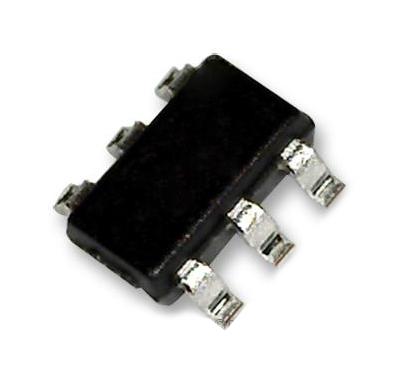

DIODES INC. - DMC2038LVT - Dual MOSFET, Complementary N and P Channel, 20 V, 3.7 A, 0.027 ohm, TSOT-26, Surface Mount

  • Transistor Polarity: N and P Channel
  • Continuous Drain Current Id: 3.7A
  • Drain Source Voltage Vds: 20V
  • On Resistance Rds(on): 0.027ohm
  • Rds(on) Test Voltage Vgs: 4.5V
  • Threshold Voltage Vgs: 400mV
  • Power Dissipation Pd: 1.13W
  • Transistor Case Style: TSOT-26
  • No. of Pins: 6Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Continuous Drain Current Id, N Channel: 4.5A
  • Continuous Drain Current Id, P Channel: 3.1A
  • Drain Source Voltage Vds, N Channel: 20V
  • Drain Source Voltage Vds, P Channel: -20V
  • Module Configuration: Dual
  • On Resistance Rds(on), N Channel: 0.027ohm
  • On Resistance Rds(on), P Channel: 0.057ohm
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
