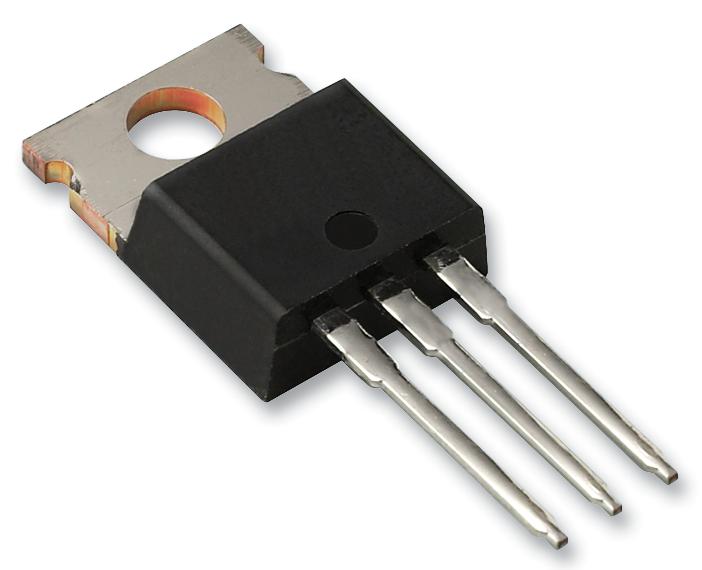

IXYS SEMICONDUCTOR - DPG20C400PB - Fast / Ultrafast Diode, 400 V, 10 A, Dual Common Cathode, 1.4 V, 45 ns, 100 A
- Repetitive Reverse Voltage Vrrm Max: 400V
- Forward Current If(AV): 10A
- Diode Configuration: Dual Common Cathode
- Forward Voltage VF Max: 1.4V
- Reverse Recovery Time trr Max: 45ns
- Forward Surge Current Ifsm Max: 100A
- Operating Temperature Max: 175°C
- Diode Case Style: TO-220AB
- No. of Pins: 3 Pin
- Product Range: DPG20 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Case Temperature Tc @ If: 145°C
- Current If @ Vf: 10A
- Current Ifsm: 100A
- Diode Type: Fast Recovery
- Forward Voltage: 1.04V
- Junction Temperature Tj Max: 175°C
- Junction to Case Thermal Resistance A: 2.3°C/W
- No. of Pins: 3Pins
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Pin Configuration: Common Cathode
- Reverse Recovery Time trr Typ: 45ns
- Termination Type: Through Hole
- Time on for IFSM: 10ms
