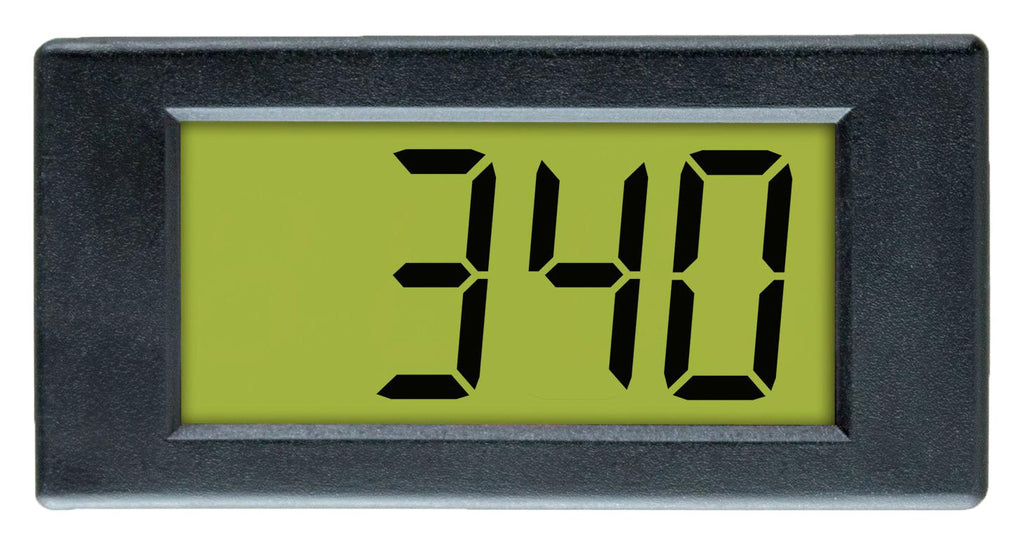

LASCAR - DPM342 - Indicator, DPM342, Current Loop, 4mA to 20mA, 3.5 Digits, 5 Vdc to 6 Vdc
- No. of Digits / Alpha: 3-1/2
- Meter Function: Current Loop Indicator
- Meter Range: 4mA to 20mA
- Digit Height: 11mm
- Panel Cutout Height: 18mm
- Panel Cutout Width: 38mm
- Supply Voltage Min: 5VDC
- Supply Voltage Max: 6VDC
- Operating Temperature Min: 0°C
- Operating Temperature Max: 50°C
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 0.05%
- Character Size: 11mm
- Display Size: 27.3mm x 12.7mm
- External Depth: 15mm
- External Length / Height: 20mm
- External Width: 40mm
- Linearity: ± 1 count
- Loop Drop: 5.6V typ
- Operating Temperature Range: 0°C to +50°C
- Panel Cutout Depth: 18mm
