DPM950 DPM, Lcd, 3.5DIGIT Lascar

LASCARSKU:DPM950 Bestelcode:9932640

Prijs:
Actie prijs€87,63

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (15 units)

Documenten en downloads

Omschrijving

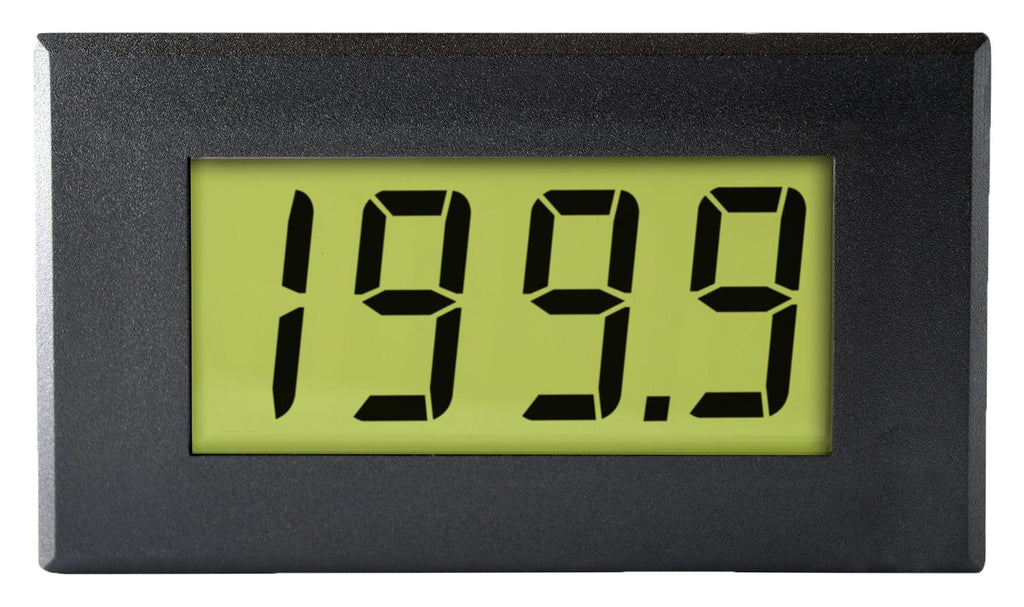

LASCAR - DPM950 - Digital Panel Meter, , 3-1/2 Digits, DC Voltage, 0mV to 200mV

  • No. of Digits / Alpha: 3-1/2
  • Meter Function: DC Voltage
  • Meter Range: 0mV to 200mV
  • Digit Height: 19mm
  • Panel Cutout Height: 40mm
  • Panel Cutout Width: 72mm
  • Supply Voltage Min: 7.5V
  • Supply Voltage Max: 14V
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 50°C
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Accuracy: 0.05%
  • Backlight Current: 50mA
  • Bezel Height: 44mm
  • Bezel Width: 76mm
  • Display Size: 51mm x 24mm
  • Display Technology: LCD
  • External Depth: 11.3mm
  • External Length / Height: 39mm
  • External Width: 71.5mm
  • Fixing Hole Diameter: 3.2mm
  • Full Scale Reading: 200mV
  • Linearity: ± 1 digit
  • Operating Temperature Range: 0°C to +50°C
  • Supply Current: 150µA
  • Supply Voltage DC Max: 14V
  • Supply Voltage DC Min: 7V
  • Supply Voltage Range: 7.5V DC to 14V DC
  • Temperature Stability + @: 100 ppm/C
