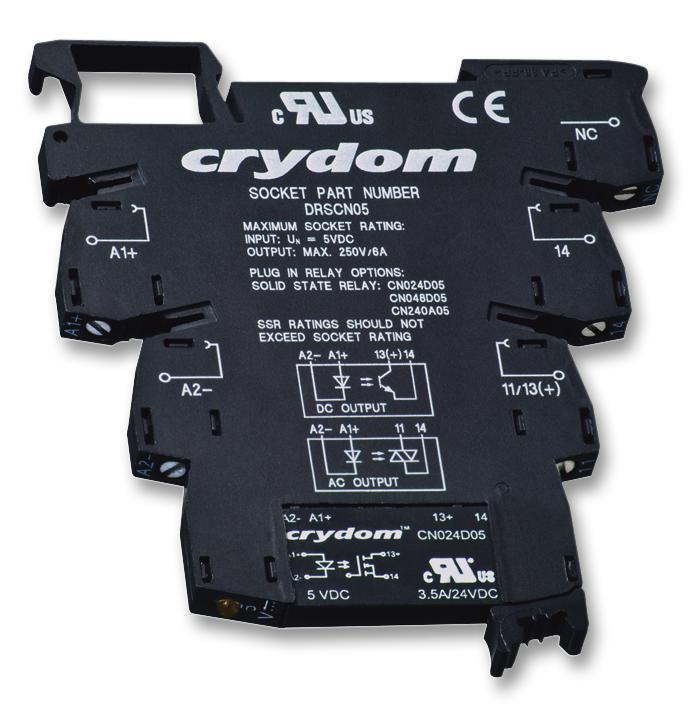

Dra-CN024D05 SSR, DIN Rail ASSY, 240 Volts SENSATA/Crydom

SENSATA/CRYDOMSKU:DRA-CN024D05 Bestelcode:1821839

Prijs:
Actie prijs€78,47

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (90 units)

Documenten en downloads

Omschrijving

SENSATA/CRYDOM - DRA-CN024D05 - Solid State Relay, SPST-NO, 3.5 A, 24 VDC, DIN Rail, Screw, Zero Crossing

  • Contact Configuration: SPST-NO
  • Load Current: 3.5A
  • Operating Voltage Max: 24VDC
  • Relay Mounting: DIN Rail
  • Relay Terminals: Screw
  • Switching Mode: Zero Crossing
  • Operating Voltage Min: 0VDC
  • Control Voltage Min: 3VDC
  • Control Voltage Max: 12VDC
  • Product Range: DRACN Series
  • SVHC: No SVHC (12-Jan-2017)
  • Control Voltage DC Max: 12VDC
  • Control Voltage DC Min: 3VDC
  • Control Voltage Range: 3V DC to 12V DC
  • Control Voltage Type: DC
  • Input Voltage Max: 5V
  • Operating Voltage Range: 0V DC to 24V DC
  • Peak Surge Current: 9A
  • RMS Load Voltage Max: 24V
  • RMS Load Voltage Min: 0V
