DRS-DTH-50-80 Reed Switch, CO, 500VDC, 3a, 30W LITTELFUSE

LITTELFUSESKU:DRS-DTH-50-80 Bestelcode:4332349

Prijs:
Actie prijs€26,62

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (52 units)

Documenten en downloads

Omschrijving

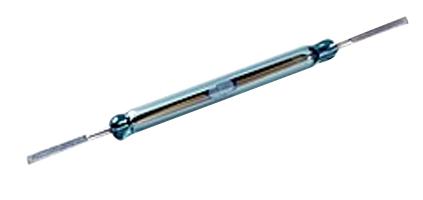

LITTELFUSE - DRS-DTH-50-80 - Reed Switch, DRR-DTH, SPDT-CO, 3 A, 500 VDC, 30 W

  • Product Range: DRR-DTH Series
  • Contact Configuration: SPDT-CO
  • Switch Mounting: -
  • Contact Current Max: 3A
  • Switching Voltage Max: 500VDC
  • Switching Power Max: 30W
  • Contact Resistance Max: 0.125ohm
  • Operate AT Min: 50AT
  • Operate AT Max: 80AT
  • Body Material: Glass
  • Contact Current DC Max: 500mA
  • Contact Resistance: 125mohm
  • External Depth: 5.53mm
  • External Length / Height: 39.67mm
  • Insulation Resistance: 1000Mohm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -20°C
  • Switch Case: Glass
  • Switching Current AC Max: 0.5A
  • Switching Current DC Max: 0.5mA
  • Switching Voltage AC / DC Max: 500VDC
