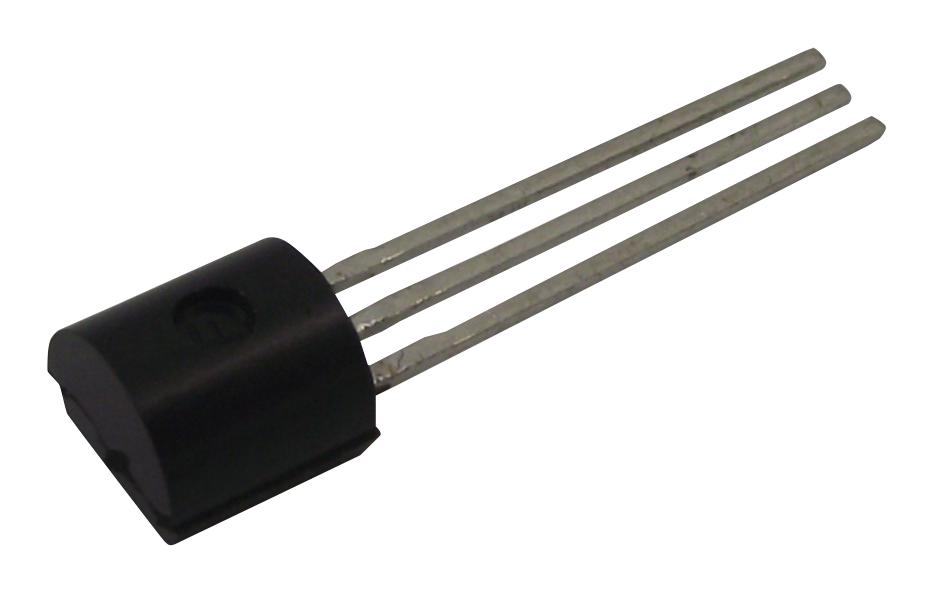

MAXIM INTEGRATED / ANALOG DEVICES - DS18B20+ - Temperature Sensor IC, Digital, ± 0.5°C, -55 °C, +125 °C, TO-92, 3 Pins
- IC Output Type: Digital
- Sensing Accuracy Range: ± 0.5°C
- Sensing Temperature Min: -55°C
- Sensing Temperature Max: +125°C
- Sensor Case Style: TO-92
- No. of Pins: 3Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 5.5V
- Product Range: Digital Thermometer
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 18
- Device Marking: DS18B20+
- IC Generic Number: 18B20
- Logic Function Number: 18B20
- Operating Temperature Max: 125°C
- Operating Temperature Range: -55°C to +125°C
- Output Current: 4mA
- Resolution: 12bit
- Resolution (Bits): 12bit
- Sensor / Transducer Type: Temperature
- Supply Current: 1mA
- Supply Voltage Range: 3V to 5.5V
- Temperature Sensing Range: -55°C to +125°C
