Omschrijving

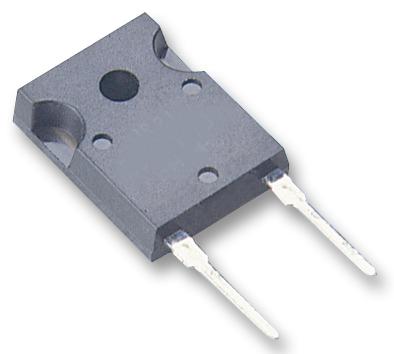

IXYS SEMICONDUCTOR - DSEI60-02A - Fast / Ultrafast Diode, Epitaxial Diode (FRED), 200 V, 69 A, Single, 880 mV, 50 ns, 600 A
- Repetitive Reverse Voltage Vrrm Max: 200V
- Forward Current If(AV): 69A
- Diode Configuration: Single
- Forward Voltage VF Max: 880mV
- Reverse Recovery Time trr Max: 50ns
- Forward Surge Current Ifsm Max: 600A
- Operating Temperature Max: 150°C
- Diode Case Style: TO-247
- No. of Pins: 2 Pin
- Product Range: DSEI6 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Case Temperature Tc @ If: 85°C
- Current If @ Vf: 60A
- Current Ifsm: 540A
- Diode Module Configuration: Single
- Diode Type: Fast Recovery
- Forward Voltage: 880mV
- Junction Temperature Tj Max: 150°C
- Junction to Case Thermal Resistance A: 0.75°C/W
- No. of Pins: 2Pins
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +150°C
- Pin Configuration: Single
- Reverse Recovery Time trr Typ: 35ns
- Termination Type: Through Hole
- Time on for IFSM: 10ms
