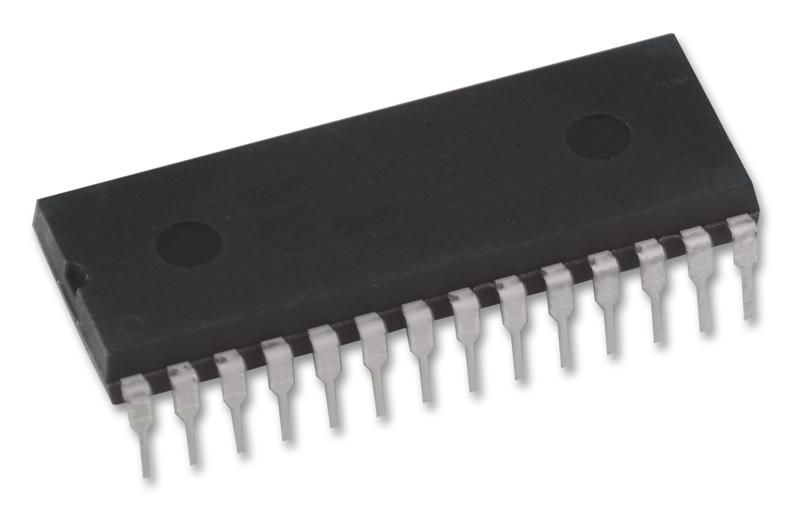

MICROCHIP - DSPIC30F2010-20I/SP - Digital Signal Controller, dsPIC30F, 40 MHz, 12 KB, 20 I/O's, I2C, SPI, UART, 5.5 V
- Product Range: dsPIC30F Series
- Core Frequency: 40MHz
- Flash Memory Size: 12KB
- No. of I/O's: 20I/O's
- Embedded Interface Type: I2C, SPI, UART
- Core Supply Voltage: 5.5V
- DSC Case Style: DIP
- No. of Pins: 28Pins
- Supply Voltage Min: 2.5V
- Supply Voltage Max: 5.5V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 30F2010
- Core Frequency Typ: 20MHz
- DSP Type: Motor Control
- Logic Function Number: 30F2010
- Operating Temperature Range: -40°C to +125°C
- RAM Memory Size: 512Byte
- Supply Voltage Range: 2.5V to 5.5V
- Termination Type: Through Hole
