E125SD1V3BE Switch, SPDT, Vert C&K Components

C&K COMPONENTSSKU:E125SD1V3BE Bestelcode:9575430

Prijs:
Actie prijs€15,08

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (215 units)

Documenten en downloads

Omschrijving

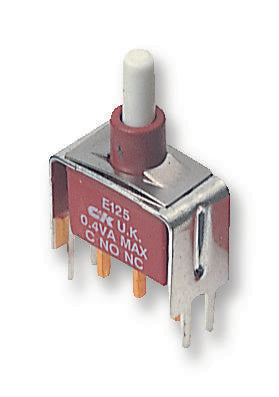

C&K COMPONENTS - E125SD1V3BE - Pushbutton Switch, E020, SPDT, On-(On), Plunger, White

  • Switch Operation: On-(On)
  • Contact Configuration: SPDT
  • Contact Voltage AC Nom: 120V
  • Contact Voltage DC Nom: 28V
  • Contact Current Max: -
  • Switch Terminals: PC Pin
  • Product Range: E020 Series
  • SVHC: Lead (15-Jan-2019)
  • Actuation Type: Round
  • Actuator / Cap Colour: White
  • Colour: Red
  • Contact Resistance: 50mohm
  • Contact Voltage VAC: 20V
  • Contact Voltage VDC: 20V
  • External Depth: 15.75mm
  • External Length / Height: 20.4mm
  • External Width: 8.13mm
  • Illumination Colour: Non-illuminated
  • Insulation Resistance: 1000Mohm
  • No. of Electrical Operations: 60000
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -30°C
  • Pin Diameter: 1.85mm
  • Power Rating: 0.4VA
  • Pushbutton Actuator Style: Plunger
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Through Hole
