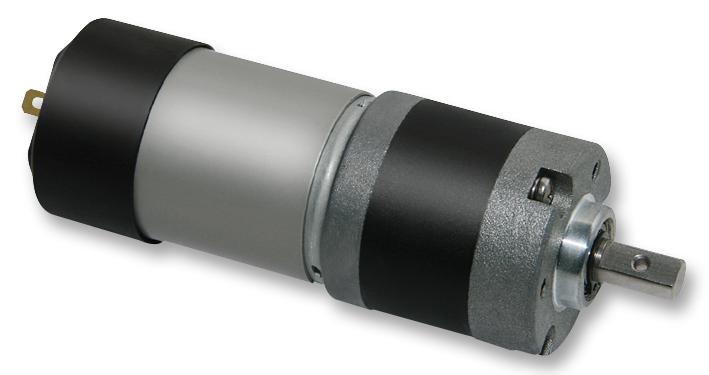

MICROMOTORS - E192-24-25 - Geared DC Motor, Brushed, 24 V, 166 rpm, 90 N-cm, 21.1 W, 25
- Supply Voltage V DC: 24VDC
- No. of Phases: -
- Power Rating: 21.1W
- Rotational Speed Max: 166rpm
- Torque Max: 90N-cm
- Product Range: E192 Series
- SVHC: No SVHC (27-Jun-2018)
- External Diameter: 40.5mm
- External Length / Height: 86mm
- No Load Speed: 166rpm
- Nom Operating Voltage: 24VDC
- Nominal Speed: 118rpm
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Power Consumption: 21.1W
- Ratio: 25
- Shaft Diameter: 8mm
- Shaft Length: 14mm
- Torque: 0.9N-m
