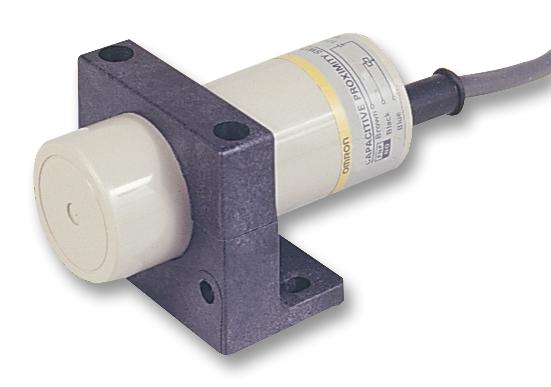

OMRON - E2KC25MF1 - Capacitive Proximity Sensor, E2K-C Series, Adjustable Sensitivity, 25 mm, PNP-NO, 10 Vdc to 30 Vdc
- Sensing Range Max: 25mm
- Thread Size - Metric: -
- Sensor Output: PNP
- Supply Voltage DC Min: 10V
- Supply Voltage DC Max: 40V
- Product Range: E2K-C Series
- External Diameter: 34mm
- External Length / Height: 82mm
- Frequency Response Max: 70Hz
- IP / NEMA Rating: IP66
- Lead Length: 2m
- Load Current Max: 200mA
- Material: ABS
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Sensing Distance Max: 25mm
- Sensing Distance Min: 3mm
- Sensing Range: 3mm to 25mm
- Sensor Input: Capacitive
- Supply Voltage Range DC: 10V to 40V
- Switch Operation: Off-On
