Omschrijving

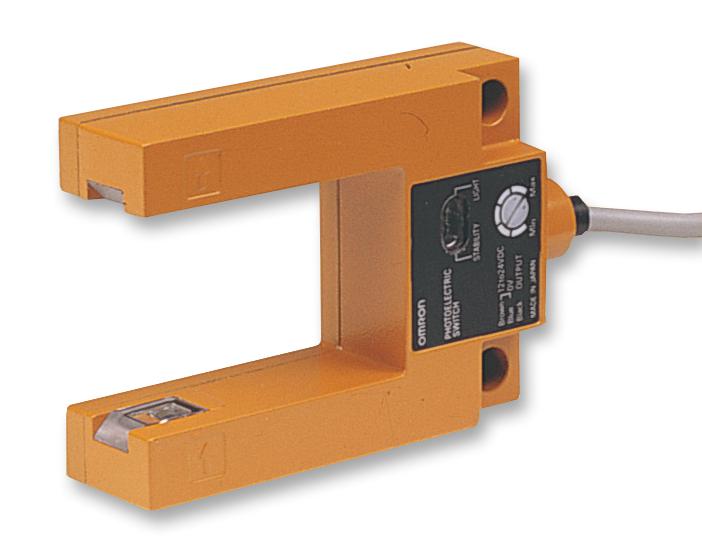

OMRON - E3SGS3E4 - Photoelectric Sensor, Slot, E3S-GS Series, Grooved, 30 mm, NPN, 12 Vdc to 24 Vdc
- Sensor Output: NPN
- Sensing Range Max: 30mm
- Supply Voltage DC Min: 12V
- Supply Voltage DC Max: 24V
- Output Current: 80mA
- Product Range: E3S-GS Series
- Current Consumption: 40mA
- External Depth: 72mm
- External Length / Height: 20mm
- External Width: 52mm
- Fixing Centres: 40mm
- IP / NEMA Rating: IP67
- Lead Length: 2m
- Operating Temperature Max: 55°C
- Operating Temperature Min: -25°C
- Output Current Max: 80mA
- Response Time: 1ms
- Sensing Distance Max: 30mm
- Sensing Range: 0mm to 30mm
- Sensor Input: Optical
- Slot Width: 30mm
- Supply Voltage Range DC: 12V to 24V
- Termination Type: Wire Leaded
