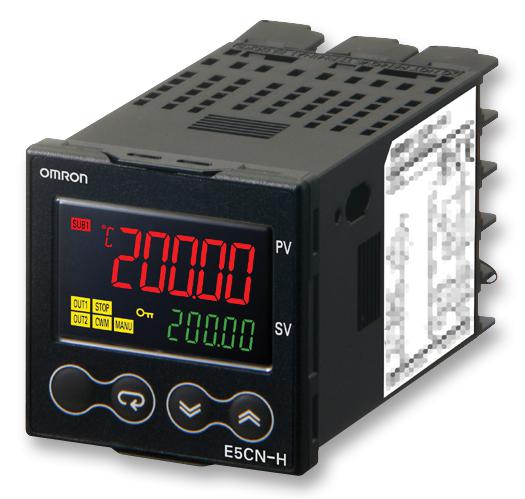

OMRON - E5CN-HR2M-500 - Temperature Controller, 100 to 240 Vac, Relay Output
- Thermocouple Type: B, E, J, K, L, N, R, S, T, W, PLII
- Operating Temperature Max: 55°C
- Operating Temperature Min: -10°C
- Temperature Accuracy ±: -
- Output Voltage Max: 250VAC
- Output Voltage Min: 5V
- Product Range: -
- Accuracy: 0.1%
- Approval Bodies: CE
- Approval Category: UL Recognised
- Colour: Black
- External Depth: 91mm
- External Length / Height: 48mm
- External Width: 48mm
- Input: Thermocouple, PRT, Current or Voltage
- No. of Inputs: 2
- No. of Outputs: 3Outputs
- Output: 2 x Auxiliary
- Output Contact: SPST-NO, 250V ac 3A
- Output Type: Relay
- Power Consumption: 8.5VA
- Storage Temperature Max: 65°C
- Storage Temperature Min: -25°C
- Supply Voltage Max: 240VAC
- Supply Voltage Min: 100VAC
