Omschrijving

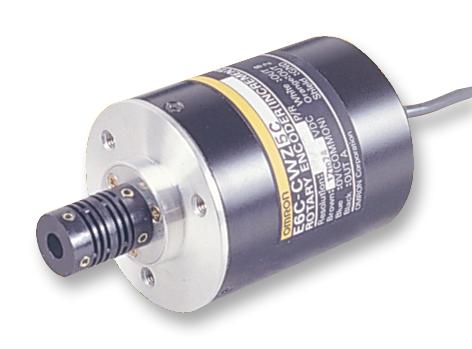

OMRON - E6C2CWZ6C-360 - Rotary Encoder, Optical, Incremental, 360 PPR, Without Push Switch
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 27.6V
- No. of Channels: 3Channels
- Rotational Speed Max: 5000rpm
- Body Diameter: 50mm
- Connector Type: Cable
- Current Consumption: 50mA
- Encoder Resolution: 360
- External Length / Height: 94mm
- Lead Length: 2m
- No. of Pulses Per Revolution: 360
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Operating Temperature Range: -10°C to +70°C
- Output Current: 80mA
- Pulse Output Count: 360
- Rotational Speed: 5000rpm
- Shaft Diameter: 6mm
- Shaft Length: 15mm
- Torque: 9.8mN-m
- Type: Incremental Encoder
