Omschrijving

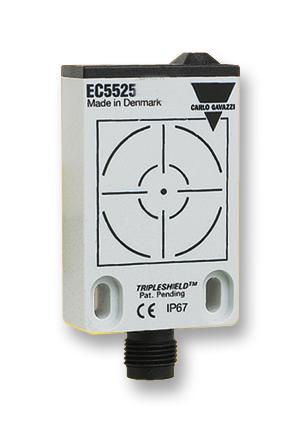

CARLO GAVAZZI - EC 55 25 PPAP - Capacitive Proximity Sensor, Type EC 5525, TRIPLESHIELD™, 25 mm, PNP, 10 to 40 Vdc, Pre-Wired
- Sensing Range Max: 25mm
- Thread Size - Metric: -
- Sensor Output: PNP
- Supply Voltage DC Min: 10V
- Supply Voltage DC Max: 40V
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 15mm
- External Length / Height: 35mm
- External Width: 55mm
- Fixing Centres: 25mm
- Fixing Hole Diameter: 3.5mm
- Frequency Response Max: 50Hz
- Lead Length: 2m
- Operating Frequency: 100Hz
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Sensing Distance Max: 25mm
- Sensing Distance Min: 5mm
- Sensing Range: 4mm to 25mm
- Sensor Input: Capacitive
- Supply Voltage Range DC: 10V to 40V
- Thread Size: M12
