EC12E2424407 Encoder, Vertical, 24 Det, 24PPR+SW Alps Alpine

ALPS ALPINESKU:EC12E2424407 Bestelcode:1520813

Prijs:
Actie prijs€4,91

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (4400 units)

Documenten en downloads

Omschrijving

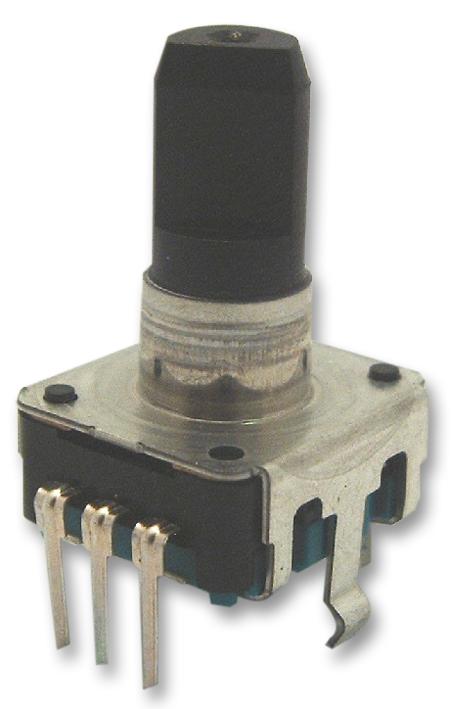

ALPS ALPINE - EC12E2424407 - Rotary Encoder, Mechanical, Incremental, 24 PPR, 24 Detents, Vertical, With Push Switch

  • Supply Voltage Min: -
  • Supply Voltage Max: 5V
  • No. of Channels: 2Channels
  • Rotational Speed Max: -
  • Product Range: EC12 Series
  • SVHC: No SVHC (20-Jun-2016)
  • Connector Type: Pin
  • Encoder Resolution: 24
  • External Depth: 12.4mm
  • External Length / Height: 20mm
  • External Width: 13.2mm
  • Height: 5mm
  • No. of Detents: 24
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Operating Temperature Range: -10°C to +70°C
  • Pulse Output Count: 24
  • Rotation Mechanical Angle: 360°
  • Shaft Diameter: 6mm
  • Shaft Length: 9mm
  • Supply Current: 0.5mA
  • Type: Incremental Encoder
