Omschrijving

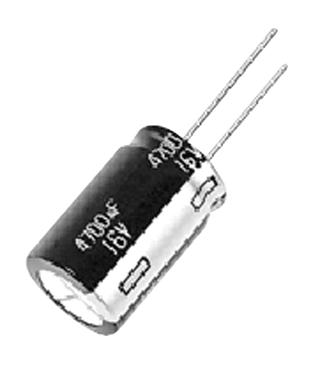

PANASONIC - ECA1CHG472 - Electrolytic Capacitor, 4700 µF, 16 V, ± 20%, Radial Leaded, 1000 hours @ 105°C, Polar
- Capacitance: 4700µF
- Voltage Rating: 16V
- Product Range: NHG Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 16mm
- Lead Spacing: 7.5mm
- Height: 25mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 1000 hours @ 105°C
- ESR: -
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 25mm
- Lead Diameter: 0.8mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +105°C
- Ripple Current AC: 1480mA
- Ripple Current Frequency: 120Hz
- Ripple Current Temperature: 105°C
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 16V
