ECA1VM101 Cap, 100µF, 35V, 20% Panasonic

PANASONICSKU:ECA1VM101 Bestelcode:9693670

Prijs:
Actie prijs€0,39

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (21147 units)

Documenten en downloads

Omschrijving

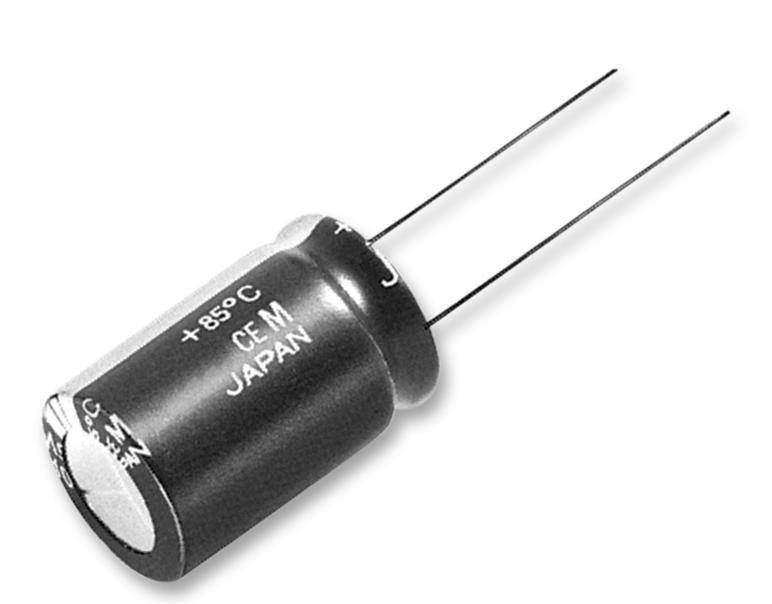

PANASONIC - ECA-1VM101 - Electrolytic Capacitor, 100 µF, 35 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Polar

  • Capacitance: 100µF
  • Voltage Rating: 35V
  • Product Range: M Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 6.3mm
  • Lead Spacing: 2.5mm
  • Height: 11.2mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Lifetime @ Temperature: 2000 hours @ 85°C
  • ESR: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 20%
  • External Length / Height: 11.2mm
  • Lead Diameter: 0.5mm
  • Leakage Current: 35µA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Operating life Time: 2000h
  • Ripple Current AC: 210mA
  • Ripple Current Frequency: 120Hz
  • Ripple Current Temperature: 85°C
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 35V
