Omschrijving

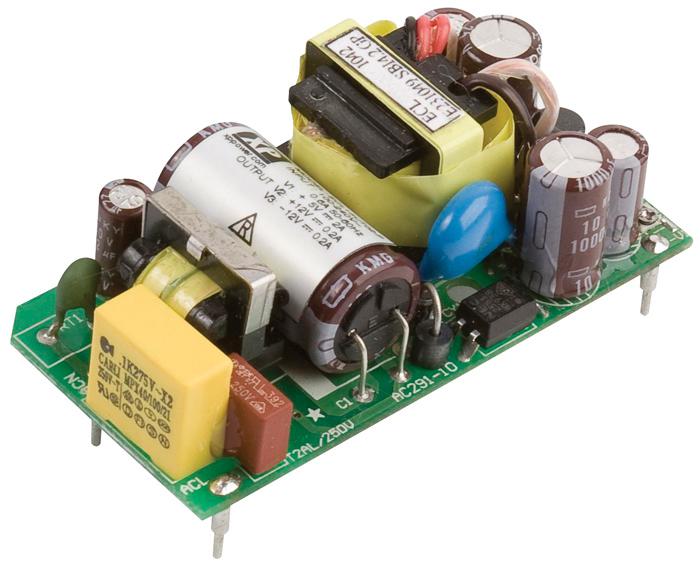

XP POWER - ECL05US09-P - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 5 W, 9 V, 550 mA
- No. of Outputs: 1 Output
- Output Power Max: 5W
- Output Voltage - Output 1: 9V
- Output Current - Output 1: 550mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Adjustable, Fixed
- Input Voltage VAC: 85V AC to 264V AC
- Width: 25.4mm
- Height: 18.46mm
- Depth: 50.8mm
- Product Range: ECL Series
- SVHC: No SVHC (15-Jan-2018)
- Efficiency: 78%
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Input Voltage DC Max: 370VDC
- Input Voltage DC Min: 120VDC
- Length: 25.4mm
- No. of Outputs: 1Outputs
- Output Current Max: 550mA
- Peak Output Current: 0.71A
- Power Rating: 5W
- Supply Voltage Typ: 110V AC, 230V AC
