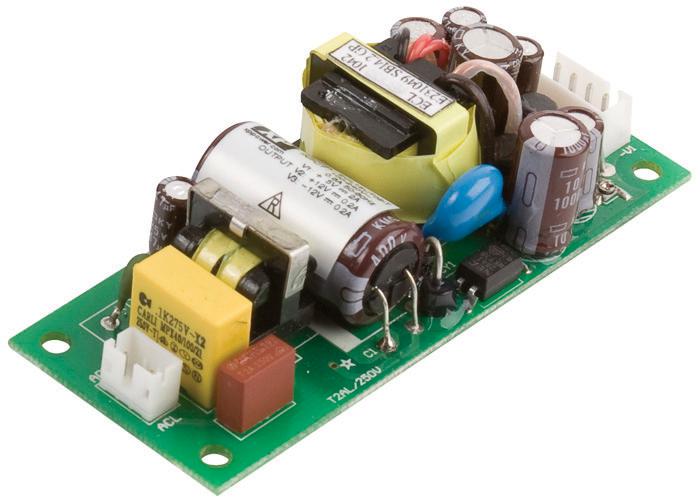

XP POWER - ECL30UT03-T - AC/DC Open Frame Power Supply (PSU), ITE, 3 Output, 30 W, 85V AC to 264V AC, Adjustable, Fixed
- No. of Outputs: 3 Output
- Power Rating (Covection Cooling): 30W
- Power Rating (Forced Cooling): -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 3A
- Output Voltage - Output 2: 15VDC
- Output Current - Output 2: 500mA
- Output Voltage - Output 3: -15V
- Output Current - Output 3: 500mA
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECL Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Height: 25.4mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Length: 87.9mm
- No. of Outputs: 3Outputs
- Output Power Max: 30W
- Power Rating: 30W
- Width: 34.6mm
