ECM100UT31 Power Supply, AC-DC, Medical, 3O/P, 75W XP Power

XP POWERSKU:ECM100UT31 Bestelcode:1289213

Prijs:
Actie prijs€214,09

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (49 units)

Documenten en downloads

Omschrijving

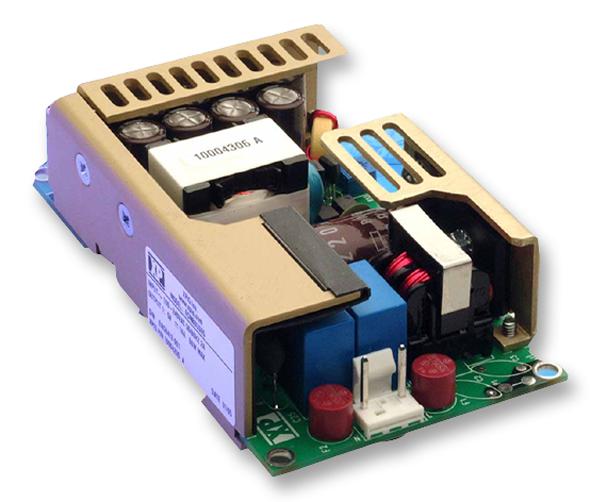

XP POWER - ECM100UT31 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 3 Output, 100W @ 5CFM, 75 W

  • No. of Outputs: 3 Output
  • Power Rating (Covection Cooling): 75W
  • Power Rating (Forced Cooling): 100W @ 5CFM
  • Input Voltage VAC: 90V AC to 264V AC
  • Power Supply Output Type: Adjustable, Fixed
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 10A
  • Output Voltage - Output 2: 12V
  • Output Current - Output 2: 3A
  • Output Voltage - Output 3: -12V
  • Output Current - Output 3: 800mA
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Product Range: ECM Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: cUL, EN, IEC, UL
  • Approvals / Standards: CSA 22.2 No. 60601, EN 60601, ES 60601
  • External Depth: 30.5mm
  • External Length / Height: 114.3mm
  • External Width: 63.5mm
  • Height: 114.3mm
  • Input Current: 0.9A
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 90V
  • Inrush Current: 40A
  • Leakage Current: 200µA
  • Length: 30.5mm
  • No. of Outputs: 3Outputs
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: 0°C
  • Output Power: 100mW
  • Output Power Max: 75W
  • Power Rating: 100W
  • Power Supply Type: Switch Mode
