Omschrijving

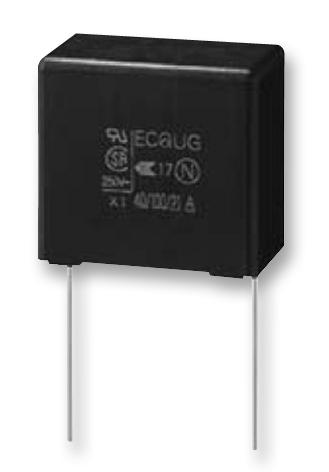

PANASONIC - ECQUAAF334MA - Safety Capacitor, Metallized PP, Radial Box - 2 Pin, 0.33 µF, ± 20%, X2, Through Hole
- Capacitance: 0.33µF
- Suppression Class: X2
- Product Range: ECQUA Series
- Voltage Rating X: 275V
- Voltage Rating Y: -
- Capacitor Dielectric Type: PP (Polypropylene)
- Capacitance Tolerance: ± 20%
- dv/dt Rating: -
- Capacitor Case Style: -
- Capacitor Terminals: Radial Leaded
- Operating Temperature Min: -40°C
- Operating Temperature Max: 110°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitor Application: Safety / Suppression
- External Depth: 9mm
- External Length / Height: 16mm
- External Width: 17.5mm
- Height: 16mm
- Lead Diameter: 0.6mm
- Lead Spacing: 15mm
- Operating Temperature Range: -40°C to +110°C
- Voltage Rating VAC: 275V
