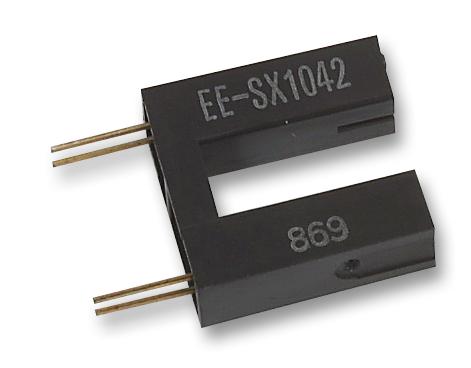

Ee-SX1042 Opto Switch, Slotted Omron

OMRONSKU:EE-SX1042 Bestelcode:1173623

Prijs:
Actie prijs€4,57

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (501 units)

Documenten en downloads

Omschrijving

OMRON - EE-SX1042 - Transmissive Photo Interrupter, Phototransistor, Through Hole, 5 mm, 0.5 mm, 50 mA, 4 V

  • Sensor Output: Phototransistor
  • Sensor Mounting: Through Hole
  • Gap Width: 5mm
  • Aperture Width: 0.5mm
  • Forward Current If: 50mA
  • Reverse Voltage Vr: 4V
  • Forward Voltage: 1.2V
  • Product Range: EE-SX1042 Series
  • Automotive Qualification Standard: -
  • Collector Emitter Saturation Voltage Vce(on): 0.4V
  • Collector Emitter Voltage V(br)ceo: 30V
  • External Depth: 5mm
  • External Length / Height: 19.7mm
  • External Width: 14mm
  • Fall Time tf: 4µs
  • Forward Current If(AV): 50mA
  • Gap Width: 5mm
  • Height: 19.7mm
  • Input Current: 30mA
  • No. of Channels: 1Channels
  • No. of Pins: 4Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +85°C
  • Optocoupler Output Type: Phototransistor
  • Output Voltage: 30V
  • Rise Time: 4µs
  • Row Pitch: 11.2mm
