Ee-SX4088-W1 Opto Switch, Slotted Omron

OMRONSKU:EE-SX4088-W1 Bestelcode:1173618

Prijs:
Actie prijs€18,54

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (8 units)

Documenten en downloads

Omschrijving

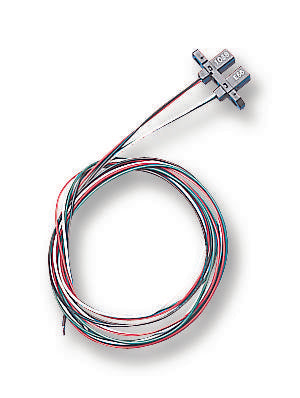

OMRON - EE-SX4088-W1 - Transmissive Photo Interrupter, Photo / Optical IC, Panel / Chassis, 3.4 mm, 0.5 mm, 50 mA, 4 V

  • Sensor Output: Photo / Optical IC
  • Sensor Mounting: Panel / Chassis
  • Gap Width: 3.4mm
  • Aperture Width: 0.5mm
  • Forward Current If: 50mA
  • Reverse Voltage Vr: 4V
  • Forward Voltage: 1.2V
  • Product Range: EE-SX4088-W1 Series
  • Automotive Qualification Standard: -
  • Continuous Collector Current Ic Max: 10mA
  • Current Ic Continuous a Max: 10mA
  • External Depth: 6mm
  • External Length / Height: 11.4mm
  • External Width: 11.4mm
  • Fall Time tf: 20µs
  • Frequency Min: 3kHz
  • Gap Width: 3.4mm
  • Input Current: 20mA
  • No. of Channels: 1Channels
  • No. of Pins: 5Pins
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +75°C
  • Optocoupler Output Type: Phototransistor
  • Output Voltage: 28V
  • Rise Time: 3µs
  • Voltage Vcc Max: 16V
  • Voltage Vcc Min: 4.5V
