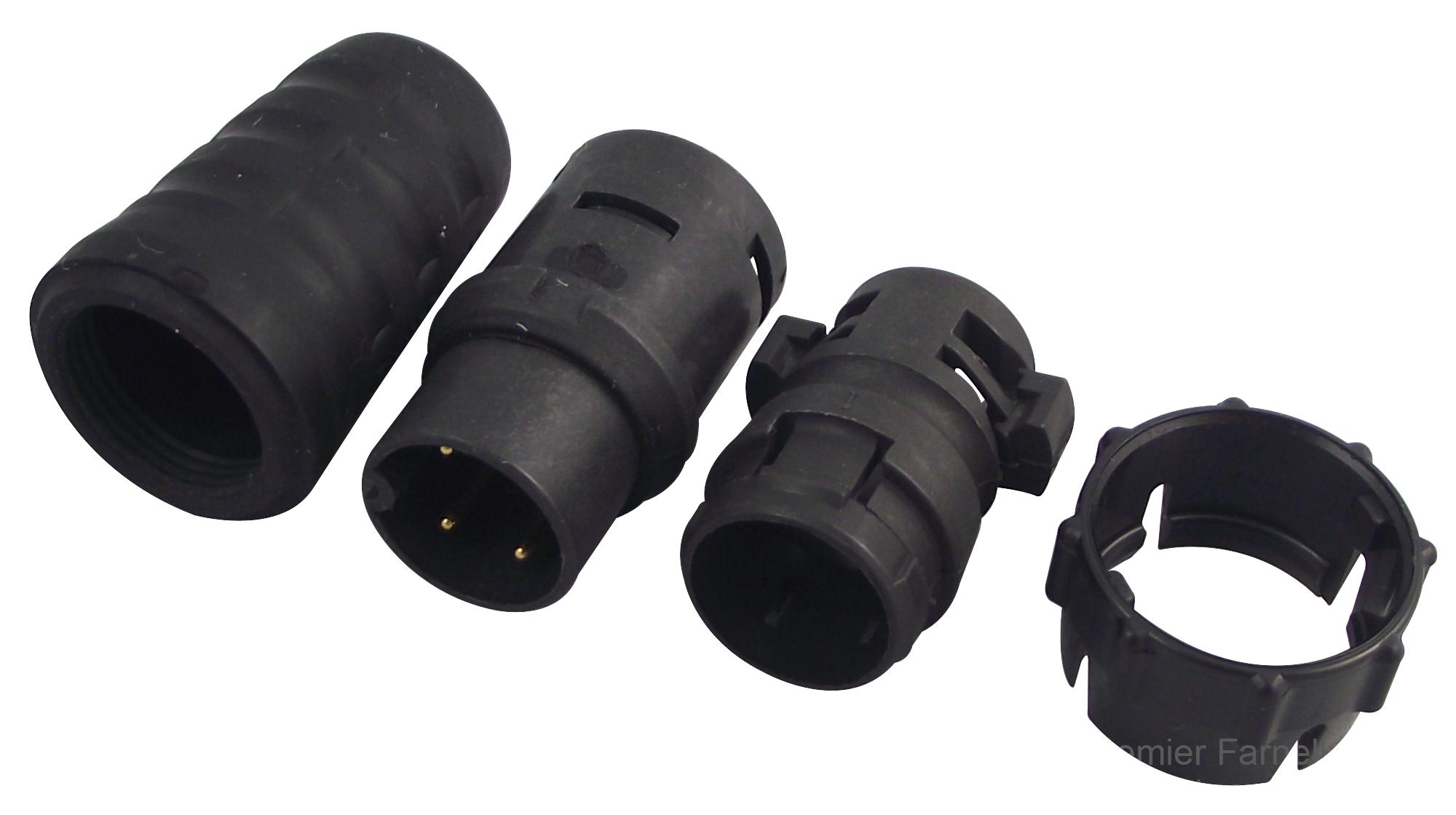

EN3C4M Circular Connector, Plug, 4 Way, Cable SWITCHCRAFT/CONXALL

SWITCHCRAFT/CONXALLSKU:EN3C4M Bestelcode:1685943

Prijs:
Actie prijs€30,74

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (19 units)

Documenten en downloads

Omschrijving

SWITCHCRAFT/CONXALL - EN3C4M - Circular Connector, EN3 Series, Cable Mount Plug, 4 Contacts, Solder Pin, Bayonet

  • Product Range: EN3 Series
  • Circular Connector Shell Style: Cable Mount Plug
  • No. of Contacts: 4Contacts
  • Circular Contact Type: Solder Pin
  • Coupling Style: Bayonet
  • Connector Body Material: Thermoplastic, Glass Filled Body
  • Connector Body Plating: -
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: UL
  • Connector Mounting: Cable Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 20mohm
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Current Rating: 7.5A
  • Flammability Rating: UL94V-0
  • Gender: Plug
  • IP / NEMA Rating: IP68
  • Insulation Resistance: 100Mohm
  • No. of Mating Cycles: 600
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -40°C
  • Voltage Rating VAC: 250V
