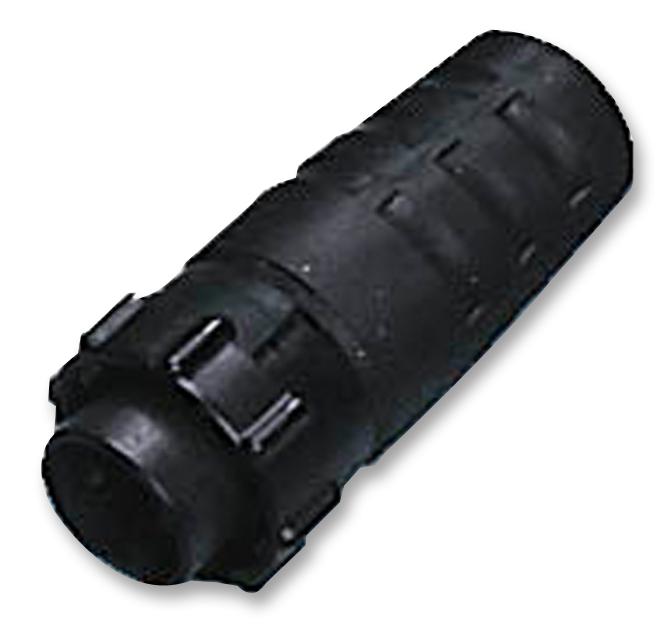

EN3C7F-F Socket, Free, 7WAY SWITCHCRAFT/CONXALL

SWITCHCRAFT/CONXALL - EN3C7F-F - Circular Connector, EN3 Series, Cable Mount Plug, 7 Contacts, Solder Socket, Bayonet

• Product Range: EN3 Series
• Circular Connector Shell Style: Cable Mount Plug
• No. of Contacts: 7Contacts
• Circular Contact Type: Solder Socket
• Coupling Style: Bayonet
• Connector Body Material: Thermoplastic, Glass Filled Body
• Connector Body Plating: -
• Contact Material: Copper Alloy
• Contact Plating: Gold
• SVHC: No SVHC (15-Jan-2018)
• Approval Category: UL 94V-0
• Cable Diameter Max: 7mm
• Cable Diameter Min: 5mm
• Connector Mounting: Cable Mount
• Connector Type: Circular Industrial
• Contact Gender: Socket
• Contact Plating: Gold Plated Contacts
• Contact Resistance: 3.1mohm
• Contact Termination: Solder
• Contact Termination Type: Solder
• Current Rating: 7.5A
• Dielectric Strength: 600V/m
• Flammability Rating: UL94V-0
• Gender: Receptacle
• IP / NEMA Rating: IP68
• Insulation Resistance: 100Mohm
• No. of Mating Cycles: 600
• Operating Temperature Max: 65°C
• Operating Temperature Min: -40°C
• Voltage Rating VAC: 600V
