Omschrijving

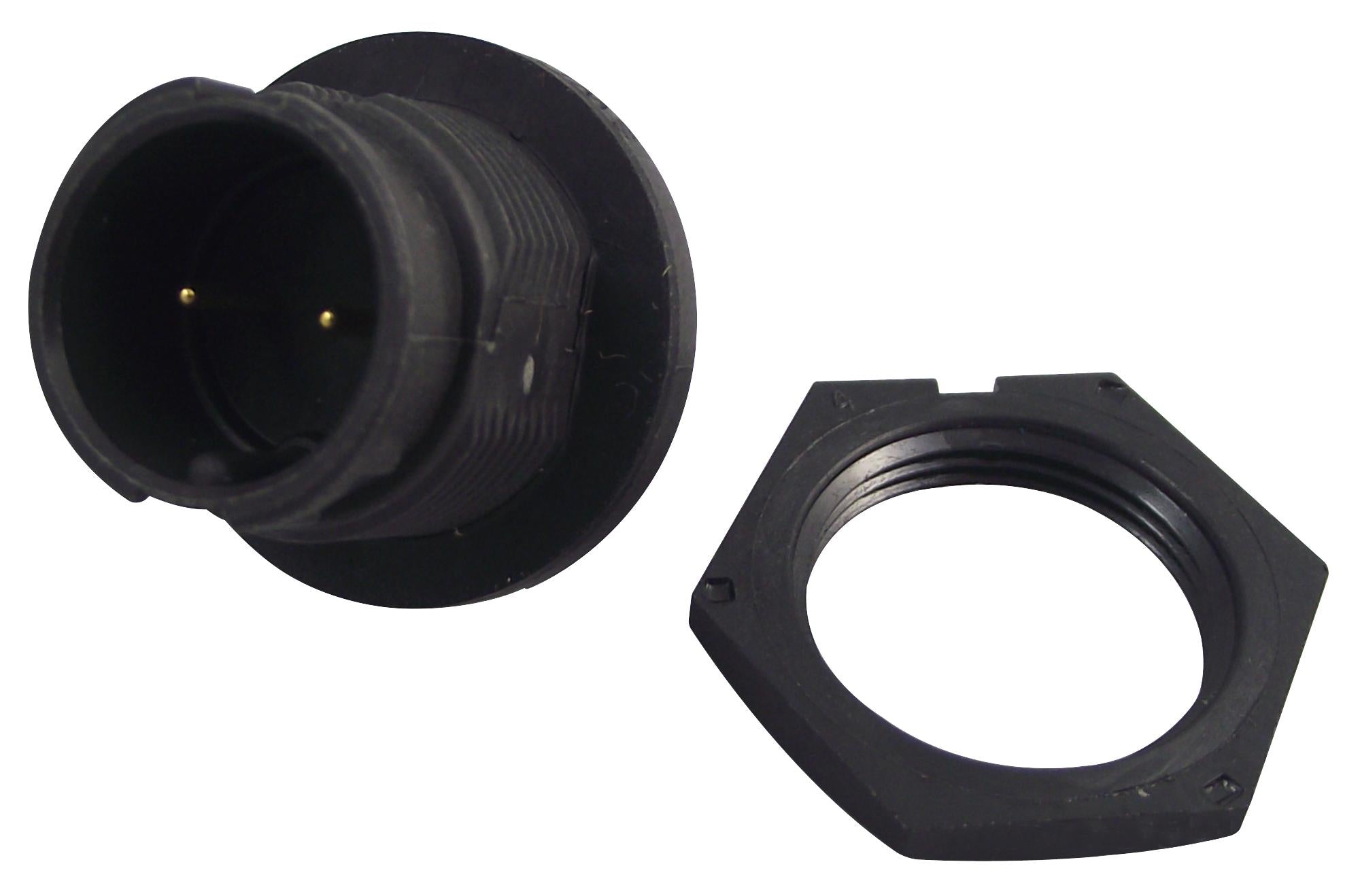

SWITCHCRAFT/CONXALL - EN3P2M-F - Circular Connector, EN3 Series, Panel Mount Receptacle, 2 Contacts, Solder Pin, Bayonet
- Product Range: EN3 Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 2Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: Bayonet
- Connector Body Material: Thermoplastic, Glass Filled Body
- Connector Body Plating: -
- Contact Material: Copper Alloy
- Contact Plating: Gold
- SVHC: No SVHC (15-Jan-2018)
- Approval Category: UL 94V-0
- Cable Diameter Max: 7mm
- Cable Diameter Min: 5mm
- Connector Mounting: Panel Mount
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 3.1mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 7.5A
- Dielectric Strength: 600V/m
- Flammability Rating: UL94V-0
- Gender: Plug
- IP / NEMA Rating: IP68
- Insulation Resistance: 100Mohm
- No. of Mating Cycles: 600
- Operating Temperature Max: 65°C
- Operating Temperature Min: -40°C
- Panel Thickness Max: 4.76mm
- Panel Thickness Min: 0.79mm
- Voltage Rating VAC: 600V
