Omschrijving

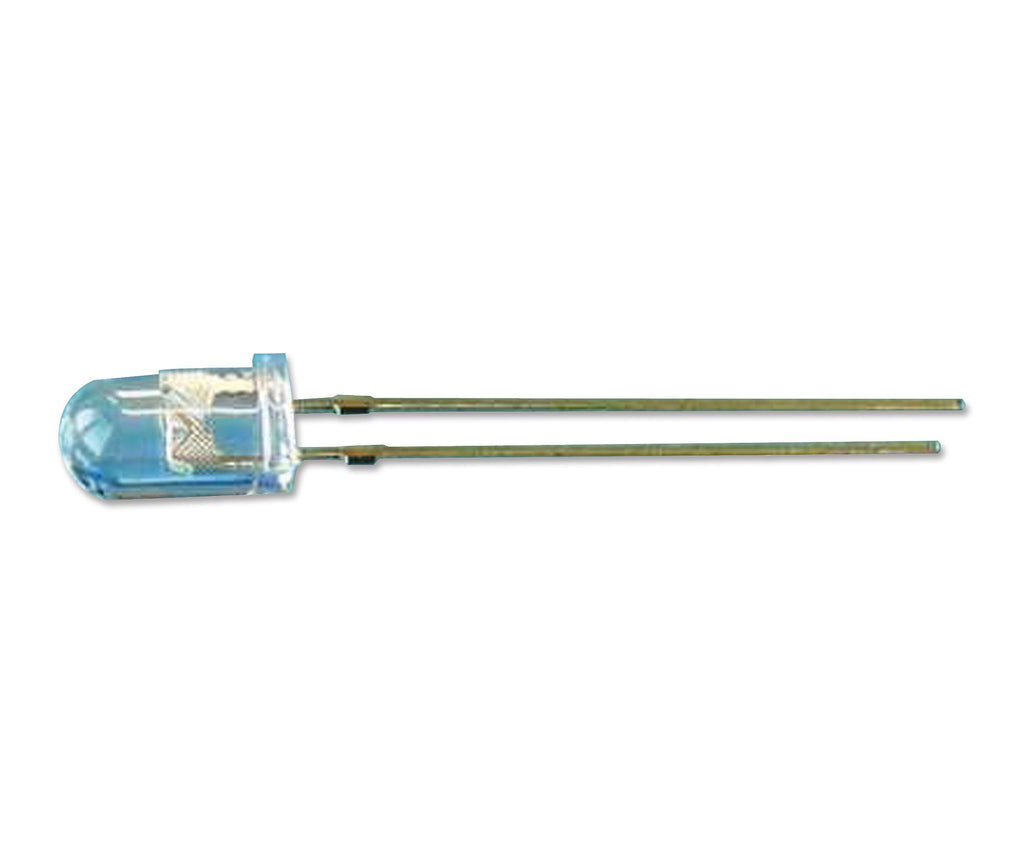

OSA OPTO LIGHT - EOLD-1550-525 - Infrared Emitter, High Power, 1550 nm, 20 °, T-1 3/4 (5mm), 11 mW/Sr, 10 ns, 10 ns
- Peak Wavelength: 1550nm
- Angle of Half Intensity: 20°
- Diode Case Style: T-1 3/4 (5mm)
- Radiant Intensity (Ie): 11mW/Sr
- Rise Time: 10ns
- Fall Time tf: 10ns
- Forward Current If(AV): 100mA
- Forward Voltage VF Max: 900mV
- Operating Temperature Min: -20°C
- Operating Temperature Max: 80°C
- Automotive Qualification Standard: -
- Product Range: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- No. of Pins: 2Pins
- Viewing Angle: 20°
