Omschrijving

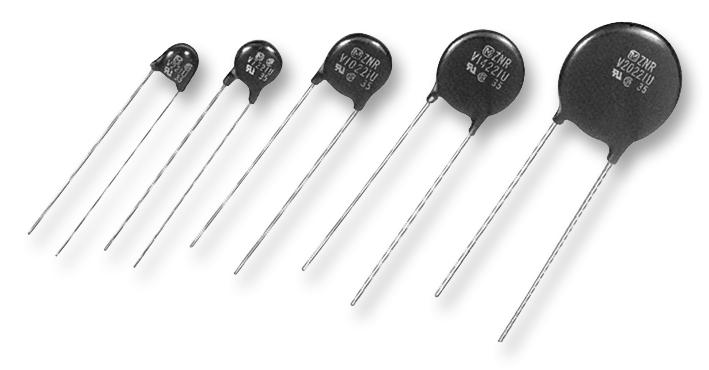

PANASONIC - ERZV14D681 - TVS Varistor, 420 V, 560 V, V, 1.12 kV, Disc 14mm, Zinc Oxide Non-Linear Resistor (ZNR)
- Voltage Rating VAC: 420V
- Voltage Rating V DC: 560V
- Product Range: V Series
- Clamping Voltage Vc Max: 1.12kV
- Varistor Case Style: Disc 14mm
- Varistor Type: High Surge Current
- Peak Surge Current @ 8/20µs: 5kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 190J
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Operating Temperature Range: -40°C to +85°C
- Suppressor Type: Absorber
- Varistor Voltage @ 1mA: 680V
