Omschrijving

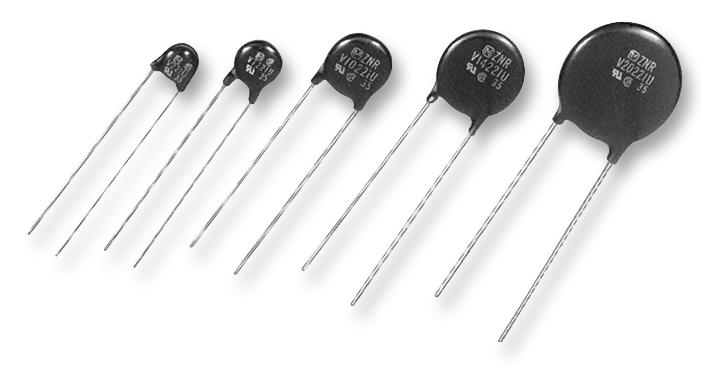

PANASONIC - ERZV20D201 - TVS Varistor, 130 V, 170 V, ZNR V, 340 V, Disc 20mm, Zinc Oxide Non-Linear Resistor (ZNR)
- Voltage Rating VAC: 130V
- Voltage Rating V DC: 170V
- Product Range: ZNR V Series
- Clamping Voltage Vc Max: 340V
- Varistor Case Style: Disc 20mm
- Varistor Type: Zinc Oxide Non-Linear Resistor (ZNR)
- Peak Surge Current @ 8/20µs: 10kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 140J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Clamping Voltage: 340V
- Operating Temperature Range: -40°C to +85°C
- Suppressor Type: Absorber
- Surge Current: 10kA
- Varistor Voltage @ 1mA: 200V
