EXFS/HR 470PF +/- 1% CAP, 470PF, 63V, 1%, PS, THROUGH HOLE LCR COMPONENTS
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
EXFS/HR 470PF +/- 1% CAP, 470PF, 63V, 1%, PS, THROUGH HOLE LCR COMPONENTS

EXFS/HR 470pF +/- 1% Cap, 470pF, 63V, 1%, PS, Through Hole LCR Components

LCR COMPONENTSSKU:EXFS/HR 470PF +/- 1% Bestelcode:9520228
Prijs:
€5,00

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (886 units)

Documenten en downloads

Technical Data Sheet - EN

Omschrijving

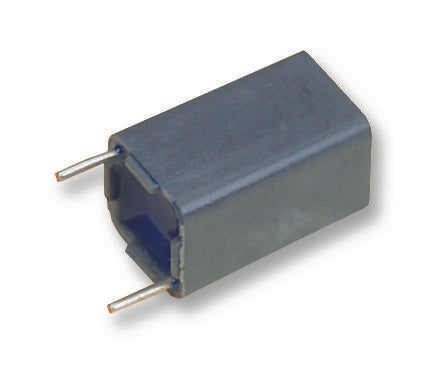

LCR COMPONENTS - EXFS/HR 470PF +/- 1% - Power Film Capacitor, Film / Foil PS, Radial Box - 2 Pin, 470 pF, ± 1%, Telecommunication

  • Capacitance: 470pF
  • Voltage Rating: 63V
  • Capacitor Dielectric Type: PS (Polystyrene)
  • Capacitance Tolerance: ± 1%
  • Product Range: EXFS/HR Series
  • Capacitor Case Style: -
  • Capacitor Terminals: Radial Leaded
  • Lead Spacing: 5.08mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 70°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 1%
  • Capacitor Mounting: Through Hole
  • Climatic Category: 40/70/56
  • External Length / Height: 13mm
  • Insulation Resistance: 500000Mohm
  • Lead Diameter: 0.6mm
  • Lead Length: 4mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +70°C
  • Power Factor: 0.0005
  • Power Factor Frequency: 1kHz
  • Temperature Coeff. +: -110ppm/°C
  • Temperature Coeff. -: -170ppm/°C
  • Temperature Coefficient: -110ppm/°C to -170ppm/°C
  • Tolerance +: 1%
  • Tolerance -: 1%
  • Voltage Rating V DC: 63V
  • Voltage Rating VAC: 40V
