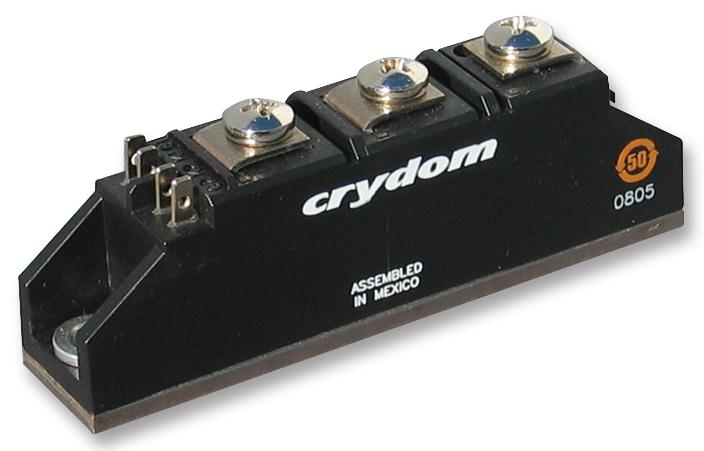

SENSATA/CRYDOM - F1842SDK1600 - Thyristor Module, Series Connected, 40 A, 1.6 kV
- SCR Module Type: Series Connected - SCRs
- Peak Repetitive Off-State Voltage, Vdrm: 1.6kV
- Gate Trigger Current Max, Igt: 150mA
- Current It av: 40A
- On State RMS Current IT(rms): 40A
- Peak Non Rep Surge Current Itsm 50Hz: 1kA
- Holding Current Max Ih: -
- Gate Trigger Voltage Max Vgt: 3V
- Operating Temperature Max: 125°C
- Product Range: F18 Series
- SVHC: No SVHC (12-Jan-2017)
- Current Ib: 40A
- Current Itsm: 1000A
- Module Configuration: Power
- No. of Pins: 7Pins
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Repetitive Reverse Voltage Vrrm Max: 1600V
- Termination Type: Screw
- Thyristor Case: Module
- Thyristor Case Style: Module
- Thyristor Type: SCR
