Omschrijving

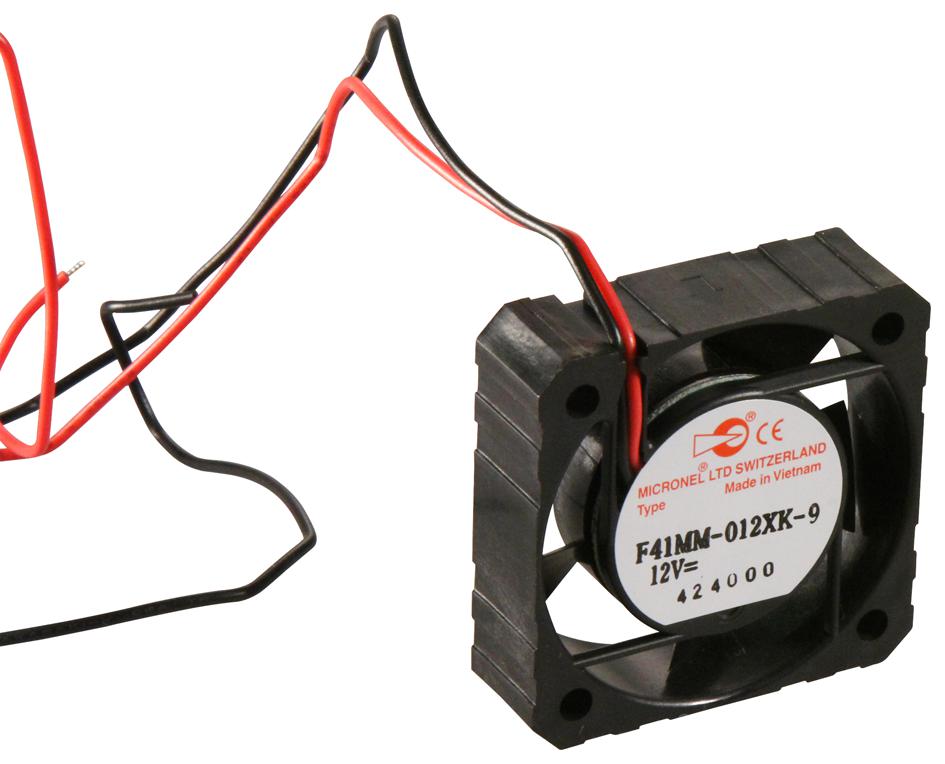

MICRONEL - F41MM-012XK-9 - DC Axial Fan, 12 V, Square, 41 mm, 12 mm, Ball Bearing, 4.42 CFM
- Supply Voltage: 12V
- Current Type: DC
- Fan Frame Size: 41mm
- External Depth: 12mm
- Noise Rating: 18dBA
- Flow Rate - Imperial: 4.42cu.ft/min
- Flow Rate - Metric: 125l/min
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 63mA
- Product Range: F41MM Series
- Power Rating: -
- IP Rating: -
- External Height: 41mm
- External Width: 41mm
- Fixing Centres: 32mm
- Fixing Hole Diameter: 3.5mm
- Frame Dimensions: 41mm x 41mm x 12mm
- Lead Length: 300mm
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Operating life Time: 30000h
- Panel Cutout Diameter: 39mm
- Power Consumption: 1W
