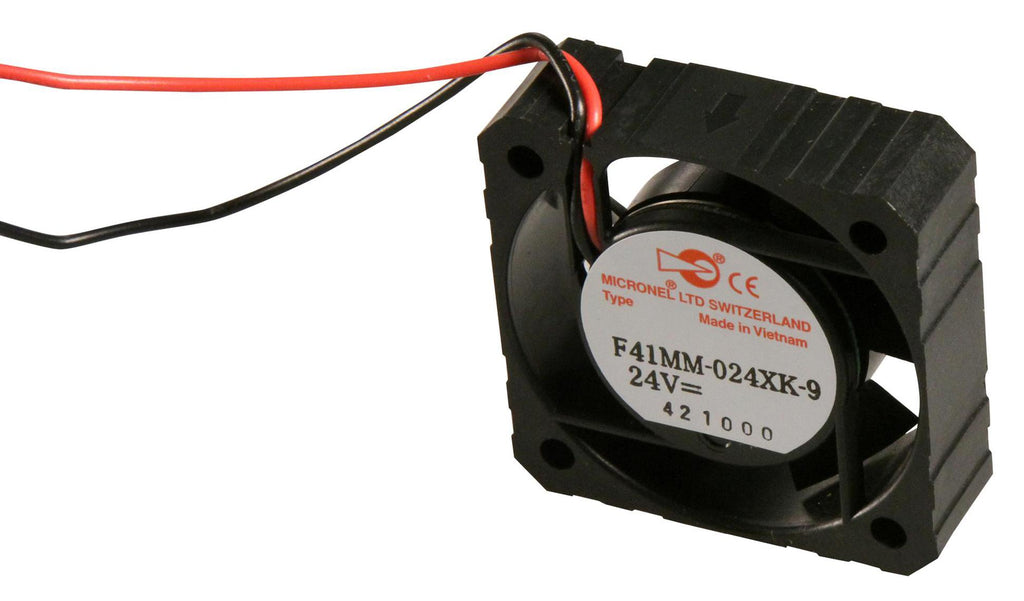

F41MM-024XK-9 Fan, 40mm, 24Vdc MICRONEL

MICRONELSKU:F41MM-024XK-9 Bestelcode:1175748

Prijs:
Actie prijs€68,54

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (79 units)

Documenten en downloads

Omschrijving

MICRONEL - F41MM-024XK-9 - DC Axial Fan, 24 V, Square, 41 mm, 12 mm, Ball Bearing, 4.95 CFM

  • Supply Voltage: 24V
  • Current Type: DC
  • Fan Frame Size: 41mm
  • External Depth: 12mm
  • Noise Rating: 20dBA
  • Flow Rate - Imperial: 4.95cu.ft/min
  • Flow Rate - Metric: 140l/min
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: 36mA
  • Product Range: F41MM Series
  • Power Rating: -
  • IP Rating: -
  • External Height: 41mm
  • External Width: 41mm
  • Fixing Centres: 32mm
  • Fixing Hole Diameter: 3.5mm
  • Frame Dimensions: 41mm x 41mm x 12mm
  • Lead Length: 300mm
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Operating life Time: 30000h
  • Panel Cutout Diameter: 39mm
  • Power Consumption: 1.3W
