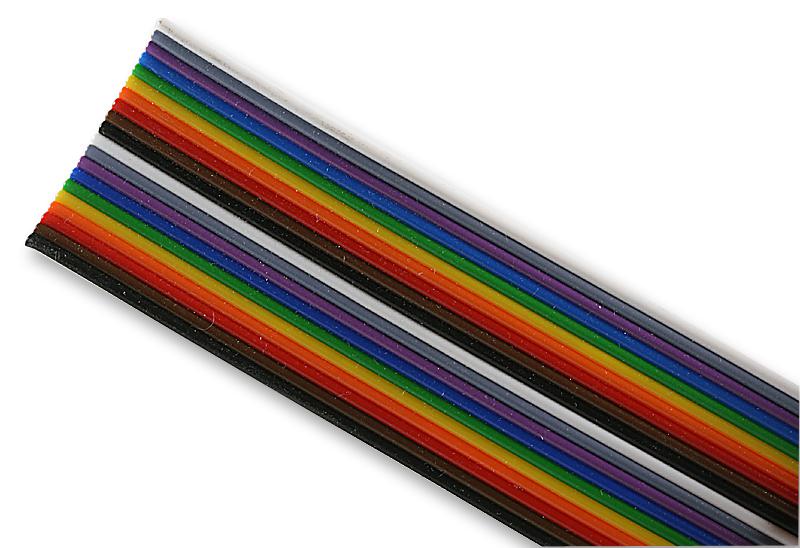

MULTICOMP PRO - FBLA10-24-25 - Ribbon Cable, Colour Coded Edge Bonded Flat, Unscreened, 10 Core, 24 AWG, 0.22 mm², 82 ft, 25 m
- Cable Shielding: Unscreened
- No. of Cores: 10Core
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.22mm²
- Reel Length (Imperial): 82ft
- Reel Length (Metric): 25m
- Jacket Colour: Multi-coloured
- Cable Width: 14mm
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Pitch Spacing: 1.4mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Colour Coded Edge Bonded Flat Cable
- Product Range: -
- Colour: Multicolour
- Conductor Make-up: 7/0.2mm
- Core - Core Capacitance: 50pF/m
- Current Rating: 2A
- External Depth: 1.2mm
- External Width: 14mm
- Operating Temperature Max: 70°C
- Primary Insulation Thickness: 1.2mm
