Omschrijving

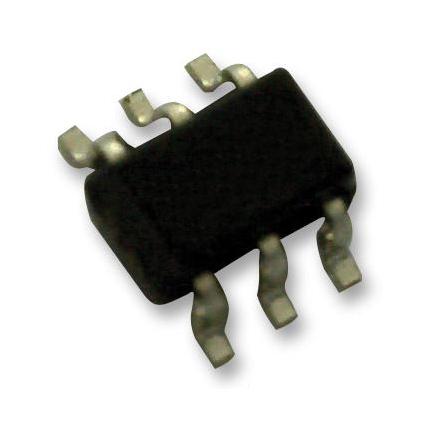

ONSEMI - FDG6301N - Dual MOSFET, N Channel, 25 V, 220 mA, 4 ohm, SC-70, Surface Mount
- Transistor Polarity: Dual N Channel
- Continuous Drain Current Id: 220mA
- Drain Source Voltage Vds: 25V
- On Resistance Rds(on): 4ohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs: 850mV
- Power Dissipation Pd: 300mW
- Transistor Case Style: SC-70
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Continuous Drain Current Id, N Channel: 220mA
- Current Id Max: 220mA
- Drain Source Voltage Vds, N Channel: 25V
- Module Configuration: Dual
- On Resistance Rds(on), N Channel: 2.6ohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 25V
- Voltage Vgs Max: 850mV
- Voltage Vgs Rds on Measurement: 4.5V
