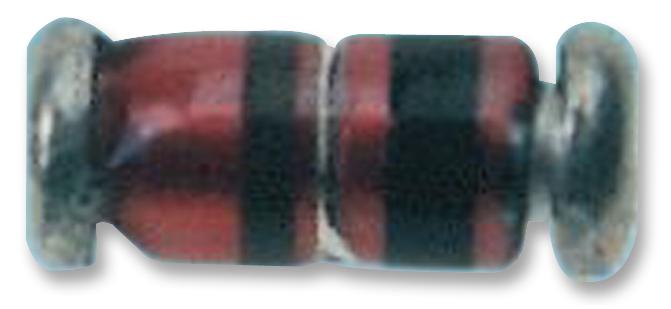

FDLL4448 Diode, Signal, LL34 ONSEMI

ONSEMISKU:FDLL4448 Bestelcode:1495127

Prijs:
Actie prijs€0,22

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (4890 units)

Documenten en downloads

Omschrijving

ONSEMI - FDLL4448 - Small Signal Diode, Single, 100 V, 400 mA, 1 V, 4 ns, 4 A

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 100V
  • Forward Current If(AV): 400mA
  • Forward Voltage VF Max: 1V
  • Reverse Recovery Time trr Max: 4ns
  • Forward Surge Current Ifsm Max: 4A
  • Operating Temperature Max: 175°C
  • Diode Case Style: LL-34
  • No. of Pins: 2Pins
  • Product Range: FDLL4 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (27-Jun-2018)
  • Application Code: Small Signal
  • Current Ifsm: 1A
  • Forward Current If Max: 5mA
  • Forward Voltage: 720mV
  • Junction Temperature Tj Max: 175°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Termination Type: Surface Mount Device
