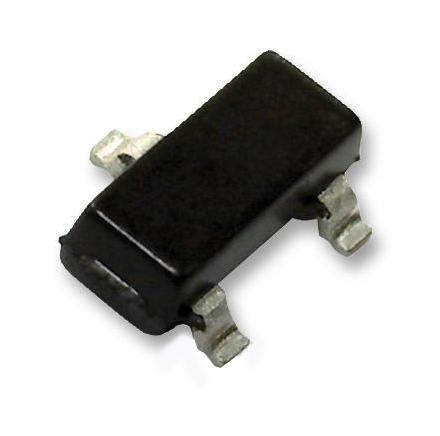

ONSEMI - FDV304P - Power MOSFET, P Channel, 25 V, 460 mA, 1.1 ohm, SOT-23, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 460mA
- Drain Source Voltage Vds: -25V
- On Resistance Rds(on): 1.1ohm
- Rds(on) Test Voltage Vgs: -4.5V
- Threshold Voltage Vgs: -860mV
- Power Dissipation Pd: 350mW
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Current Temperature: 25°C
- ESD HBM: 6kV
- External Depth: 2.5mm
- External Length / Height: 1.12mm
- External Width: 3.05mm
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 500mA
- SMD Marking: 304P
- Tape Width: 8mm
- Voltage Vds Typ: -25V
- Voltage Vgs Max: -860mV
- Voltage Vgs Rds on Measurement: -4.5V
- Voltage Vgs th Max: -1.5V
