Omschrijving

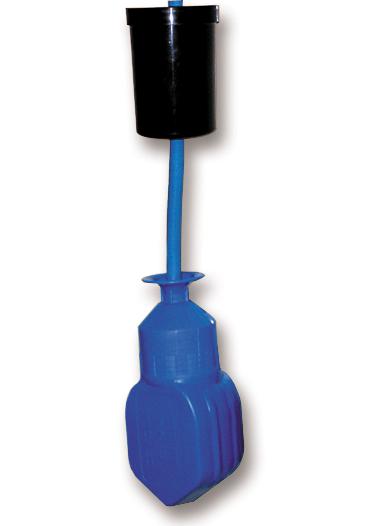

SENSATA / CYNERGY3 - FFS10CW - Float Switch, FFS Series, Horizontal, Polyethylene, 750 VA
- Operating Pressure Max: 10bar
- Sensor Body Material: PE (Polyethylene)
- Output Current: 10A
- Product Range: FFS Series
- SVHC: No SVHC (17-Dec-2015)
- AC Power: 750VA
- Body Material: PE (Polyethylene)
- Contact Configuration: 1CO
- Contact Current AC Max: 10A
- Contact Voltage AC Max: 250V
- DC Power: 180W
- External Length / Height: 333mm
- Float Diameter: 60mm
- Inductive Current Rating: 4A
- Lead Length: 5m
- Material: Polyethylene, High Density
- No. of Electrical Operations: 200000
- Operating Pressure Range: 0bar to 10bar
- Operating Temperature Max: 55°C
- Operating Temperature Min: 0°C
- Pressure Max: 10bar
- Resistive Current Rating: 10A
- Sensor Output: SPDT
- Switch Operation: On-Off
- Switching Voltage AC / DC Max: 250VAC
- Switching Voltage AC / DC Min: 110VDC
