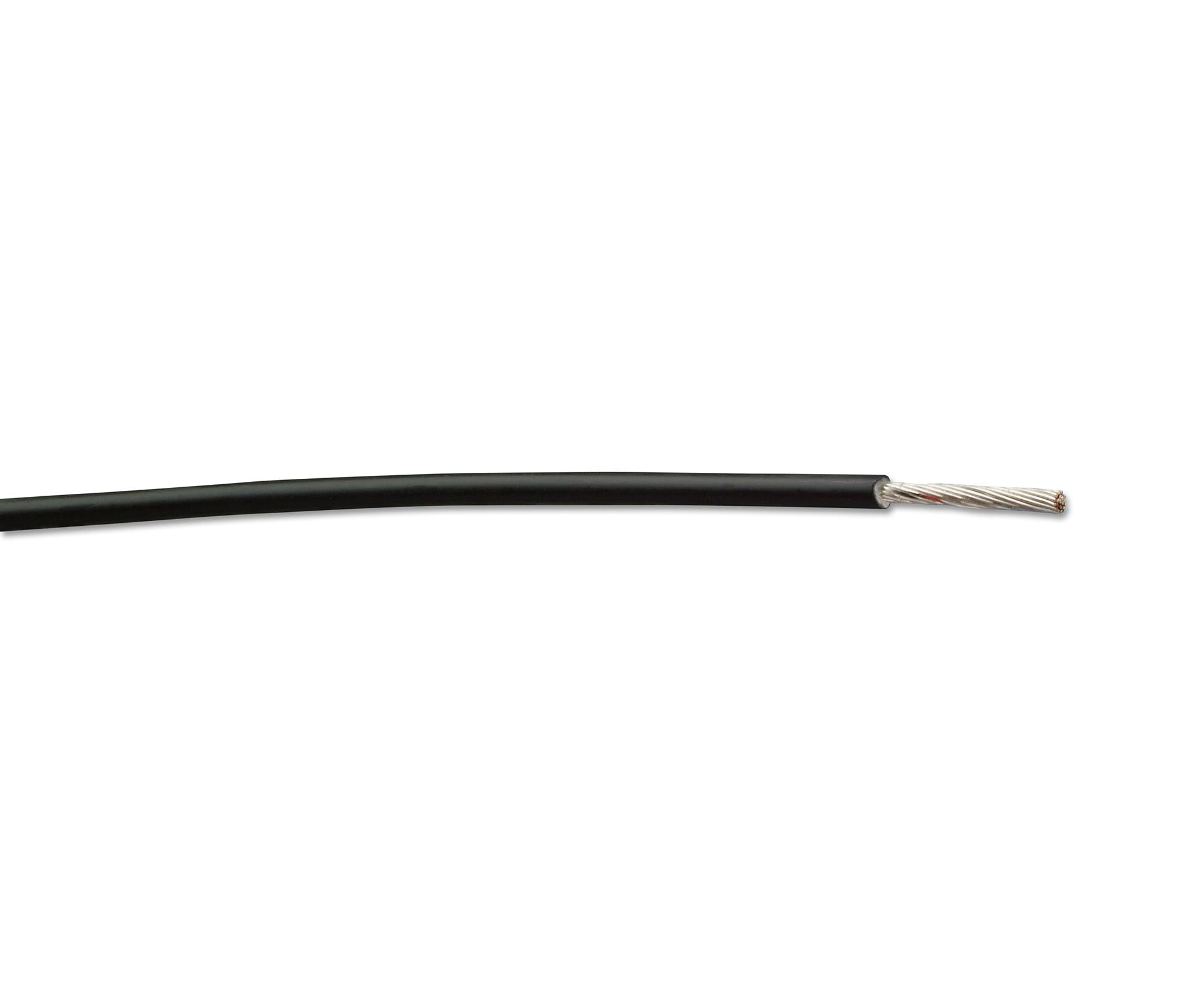

FLDWC0311-0.75-0 Wire, Black, 0.75mm, 100m Raychem - Te Connectivity

RAYCHEM - TE CONNECTIVITYSKU:FLDWC0311-0.75-0 Bestelcode:769459

Prijs:
Actie prijs€206,78

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (62 units)

Documenten en downloads

Omschrijving

RAYCHEM - TE CONNECTIVITY - FLDWC0311-0.75-0 - Wire, Stranded, Hook Up, Flexlite™, PVDF, Black, 0.75 mm², 328 ft, 100 m

  • Jacket Material: PVDF
  • Jacket Colour: Black
  • Wire Gauge: -
  • Conductor Area CSA: 0.75mm²
  • Reel Length (Imperial): 328ft
  • Reel Length (Metric): 100m
  • No. of Max Strands x Strand Size: 19 x 0.23mm
  • Voltage Rating: 600V
  • Conductor Material: Tinned Copper
  • External Diameter: 1.75mm
  • Approval Specification: -
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: UL 3584
  • Cable Diameter Max: 1.75mm
  • Cable Diameter Min: 1.65mm
  • Cable UL Style Number: UL3584
  • Conductor Diameter Max: 1.06mm
  • Conductor Diameter Min: 1.05mm
  • Conductor Make-up: 19 / 0.23mm
  • Flammability Rating: UL94V-1
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -45°C
  • Outer Diameter: 1.7mm
  • Primary Conductor Resistance: 24.7ohm/km
  • Secondary Insulation Colour: Black
  • Secondary Insulation Material: Radiation Crosslinked Modified PVF2
  • Voltage Rating VAC: 600V
