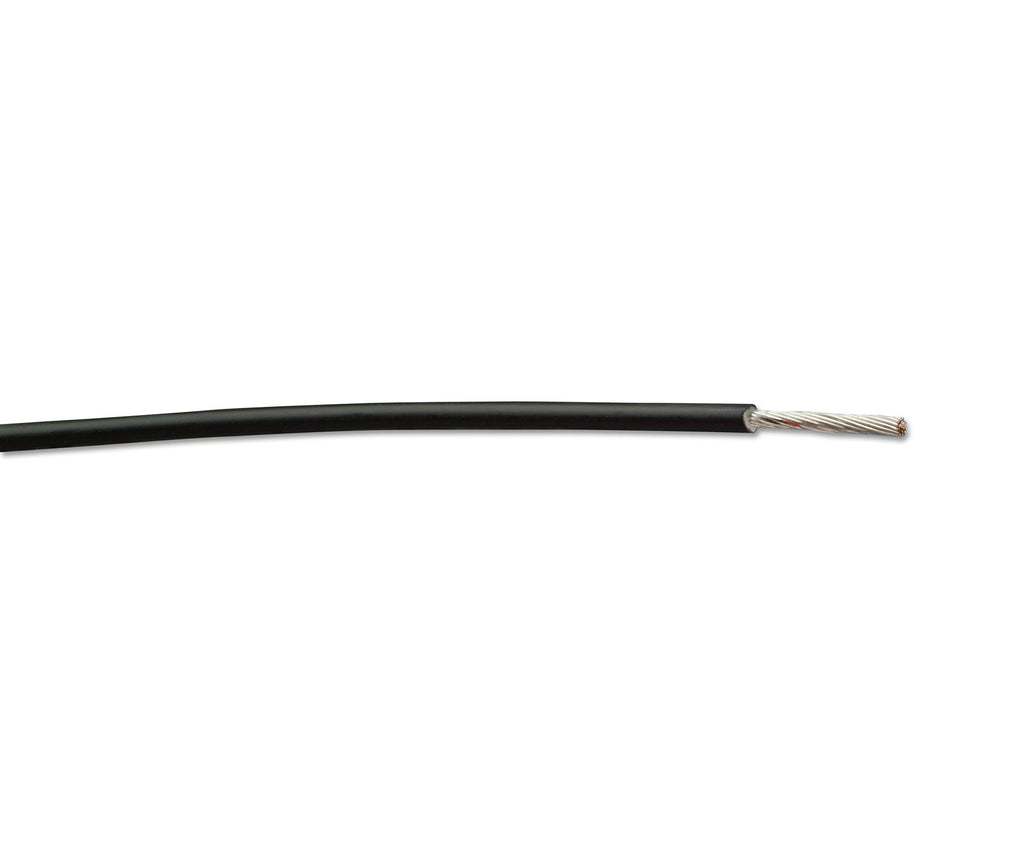

FLDWC0311-1.00-0 Wire, Black, 1mm, 100m Raychem - Te Connectivity

RAYCHEM - TE CONNECTIVITYSKU:FLDWC0311-1.00-0 Bestelcode:769514

Prijs:
Actie prijs€426,93

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (78 units)

Documenten en downloads

Omschrijving

  • Jacket Material: PVDF
  • Jacket Colour: Black
  • Wire Gauge: -
  • Conductor Area CSA: 1mm²
  • Reel Length (Imperial): 328ft
  • Reel Length (Metric): 100m
  • No. of Max Strands x Strand Size: 19 x 0.25mm
  • Voltage Rating: 600V
  • Conductor Material: Tinned Copper
  • External Diameter: 1.93mm
  • Approval Specification: -
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: UL 3584
  • Cable Diameter Max: 1.93mm
  • Cable Diameter Min: 1.78mm
  • Cable UL Style Number: UL3584
  • Conductor Diameter Max: 1.26mm
  • Conductor Diameter Min: 1.17mm
  • Conductor Make-up: 19 / 0.25mm
  • Flammability Rating: UL94V-1
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -45°C
  • Outer Diameter: 1.85mm
  • Primary Conductor Resistance: 20ohm/km
  • Secondary Insulation Colour: Black
  • Secondary Insulation Material: Radiation Crosslinked Modified PVF2
  • Voltage Rating VAC: 600V
